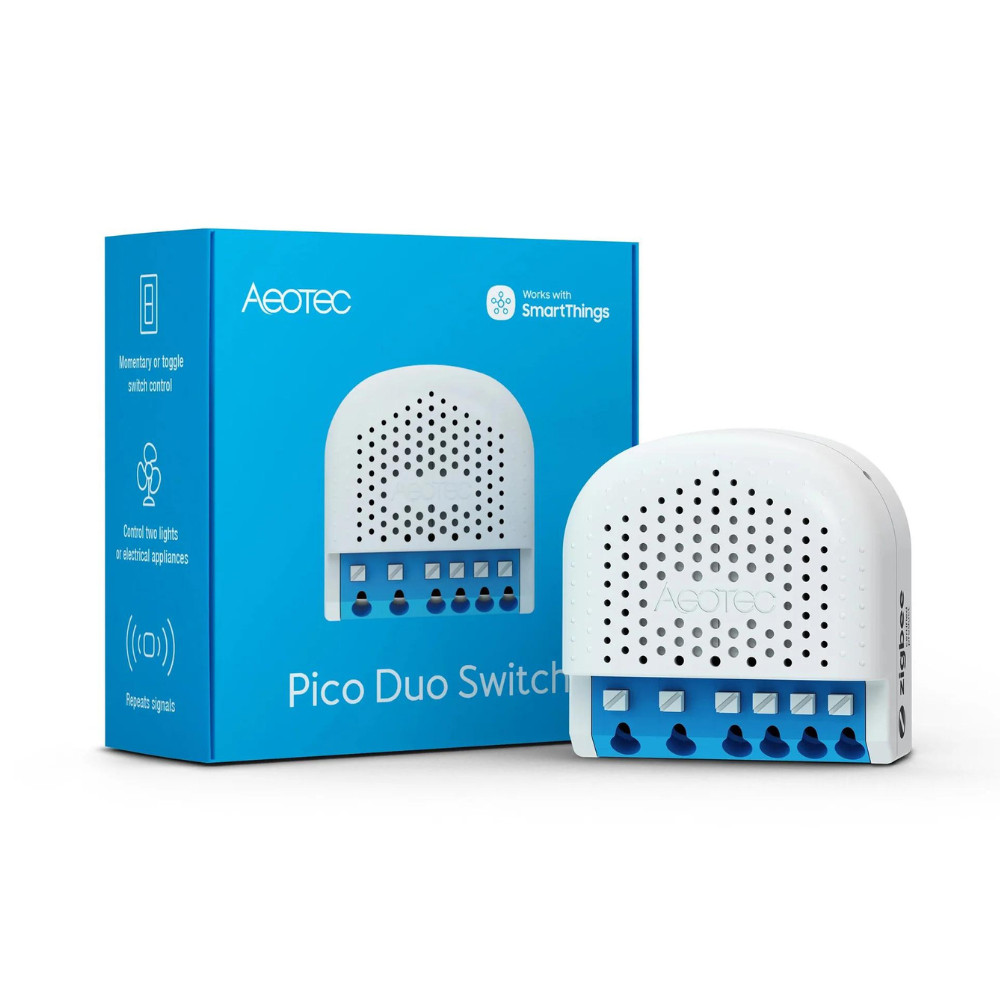

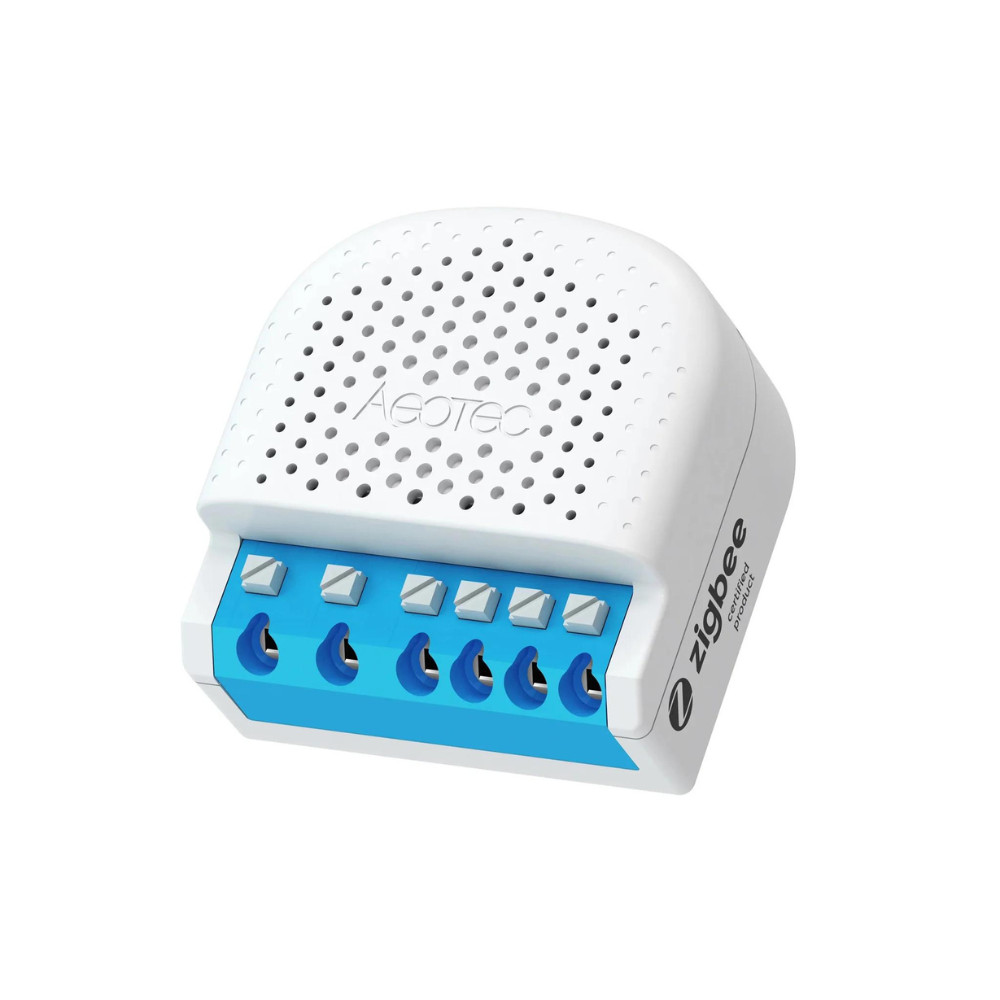

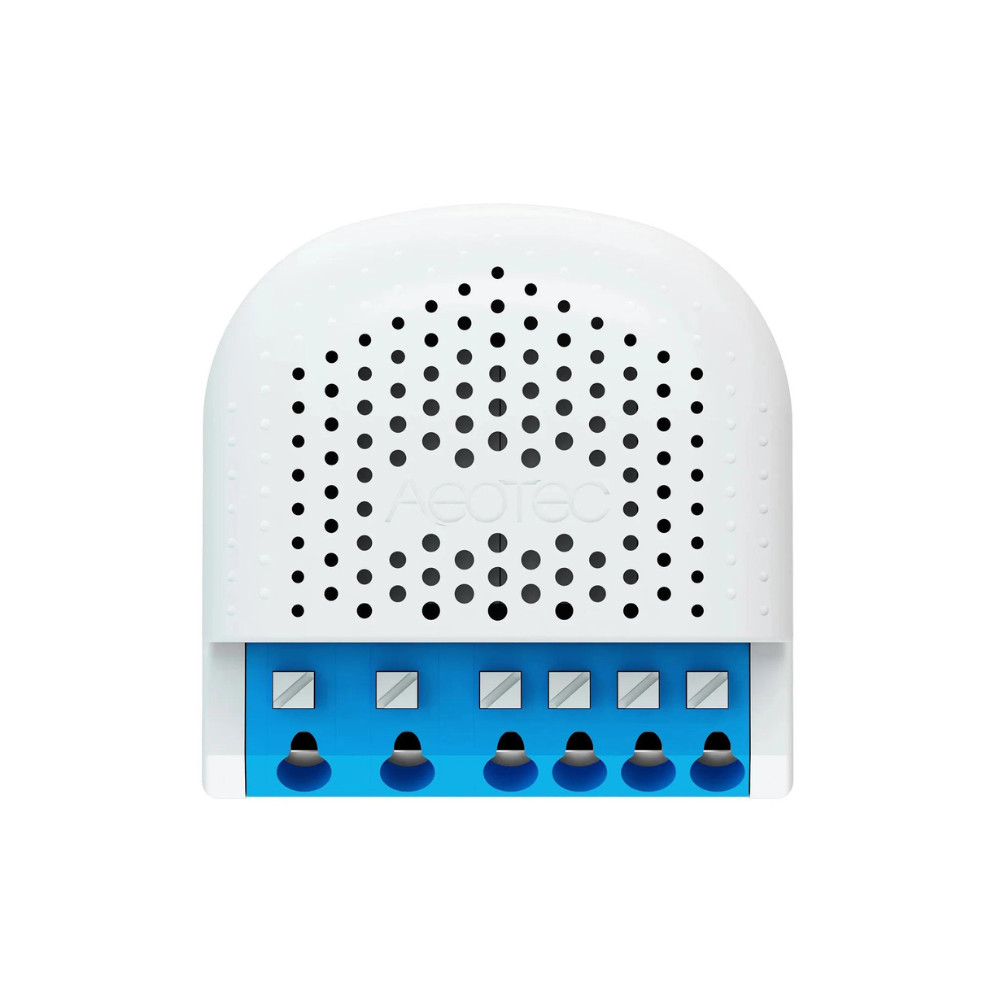

Aeotec Pico DUO Switch: Smart relay module with Zigbee 3.0
The Aeotec Pico DUO Switch is a smart relay module that communicates over the Zigbee 3.0 protocol, featuring dual outputs with a 2 x 8A current capacity. These smart relay modules also function as Zigbee repeaters, extending the signal range of devices in your smart home. Compatible with a variety of switch types, the Pico DUO also provides energy consumption monitoring to track the usage of connected devices.
Aeotec's Pico series offers flexible smart control solutions designed for flush or junction box mounting, helping make your home modern and comfortable. Powered by Zigbee and Matter technology, the Pico DUO is ideal for retrofitting into existing or new homes. It enables you to control sockets, appliances, or lighting circuits, and can be integrated behind wall switches to maintain standard control while seamlessly integrating with SmartThings or other smart home ecosystems.
eWeLink Zigbee Bridge Compatibility
The Aeotec Pico DUO can be paired with the eWeLink platform via the SmartWise Zigbee Bridge Pro but is not compatible with the Sonoff Zigbee Bridge Pro.
SmartThings Integration
With SmartThings, you're always in control. The Aeotec Pico Switch provides valuable insights and seamless control through the SmartThings app or voice commands. The Pico DUO also utilizes Matter technology, offering energy efficiency and advanced features like energy usage tracking to identify high-consumption devices. The switch supports up to a 16A load (2x 8A) with built-in overload protection and DIN EN60669 certification to ensure safety.
Quick Setup and Seamless Installation
The Pic'n Go design allows for quick installation using standardised spring-loaded connectors, eliminating the need for screwdrivers. It is built for reliable long-term performance and integrates easily into Zigbee and Matter-enabled smart home ecosystems, making it ideal for professionals and DIY installations alike.
SmartThings Ecosystem
The SmartThings platform allows you to connect and control smart devices from different brands and technologies, all through one app. Whether it's lighting, heating, or security systems, the Aeotec Smart Home Hub ensures seamless integration and provides complete control of your home. The SmartThings app is available for Android, iOS, and iPadOS, enabling easy automation and real-time control from anywhere.
Features
- Number of Outputs: 2
- Power Supply: 110-240V AC
- Max. Resistive Switching Current: 2 x 8A
- Max. Capacitive Switching Current: 8A
- Max. Inductive Switching Current: 3.6A
- Max. Switching Voltage: 240V
- Overheat Protection: Yes
- Wall Switch Inputs: S1 & S2
- Compatible Switches: Momentary (NC/NO), Toggle switch, 2-way switch, SPDT switch
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 8% to 80%
- Operating RF Distance: Up to 100m outdoors
Scope of Delivery
- Pico Switch
- 2x Wago clamps
- DIN Rail mount
- Manual
