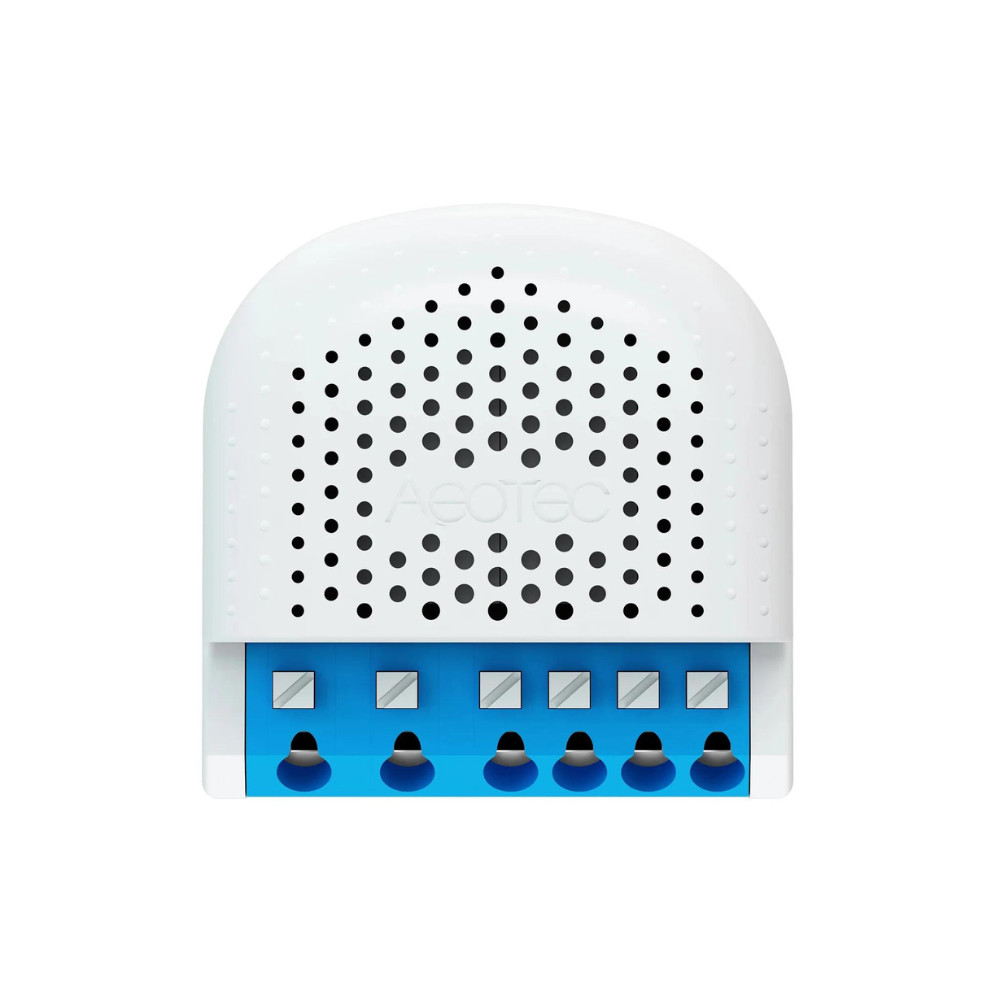

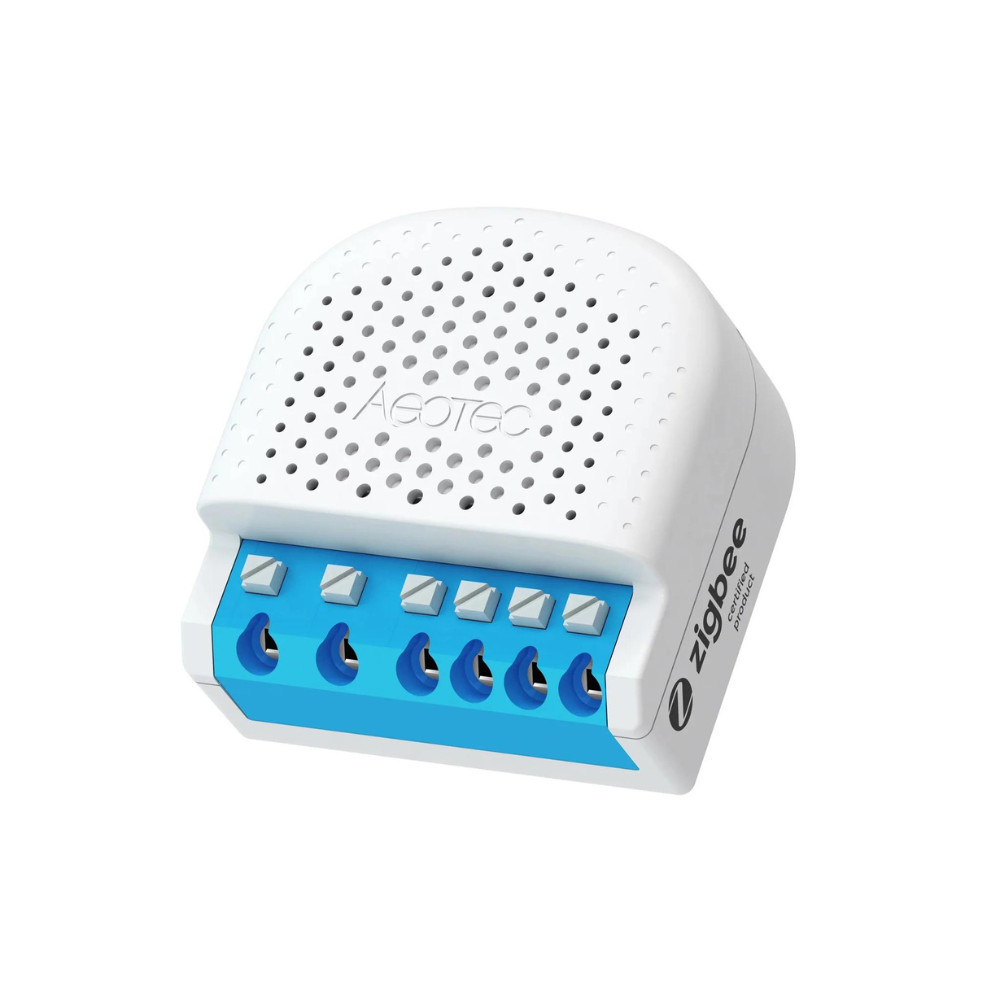

The Aeotec Pico Switch is a smart relay module communicating via Zigbee 3.0 protocol with single relay output and 16A current carrying capacity. The Aeotec Pico smart relay modules are also Zigbee repeaters, so they can transmit signals from devices located further away from the central unit. For wall control, the module is also compatible with a switch or push-button. The Pico switch also has a power metering function so that the consumption data of the devices connected to it can be monitored.
Aeotec's Pico series offers smart control solutions in flush or junction box mounting. It can help you make your home modern and comfortable. Conveniently automate and control your home or monitor your smart appliances from anywhere. Powered by Zigbee and Matter technology, the Pico range can be retrofitted to existing or new properties. It can be used to turn on/off sockets, household appliances or lighting circuits. If installed behind wall switches, you can connect wall switches to the module, so lighting circuits can continue to be controlled as usual and their energy consumption can be seamlessly integrated with SmartThings or other compatible smart home ecosystems.
eWeLink Zigbee Bridge compatibility
According to our tests, Aeotec Pico can be paired with the eWeLink platform compatible SmartWise Zigbee Bridge Pro Zigbee gateway, but it is NOT compatible with Sonoff Zigbee Bridge Pro (ZBBridge-P).
SmartThings - with SmartThings, you're always in control.
The Aeotec Pico Switch provides valuable insight and seamless control. Combined with SmartThings and Zigbee technology, users can remotely control the devices in their smart home with the app or voice commands. You can monitor or control your devices even when away from home, while taking advantage of Matter technology, the wireless protocol for smart homes, ensuring energy efficiency.
In addition to smart features, the Aeotec Pico Switch modules integrated into the Aeotec SmartThings system ensure safe operation, easily handling loads up to 16 amps. The switch, designed with built-in overload protection, puts device safety first, providing protection against overloading. It integrates seamlessly into SmartThings systems, and with DIN EN60669 certification and integrated safety measures in line with Matter and Zigbee standards, it not only provides intelligent functionality, but also guarantees a high level of safety.
Realise the benefits of metering and save money with SmartThings.
Through the intuitive SmartThings app, users can access detailed energy usage data to identify energy-hungry devices and patterns within the smart home ecosystem. By pinpointing high-consumption devices, the system alerts users to use the device more sparingly or replace it if necessary. Set targets, track progress and take control of your energy bills with Aeotec Pico Switch.
Quick setup, seamless switching - Easy Pico Switch installation - Pic'n Go

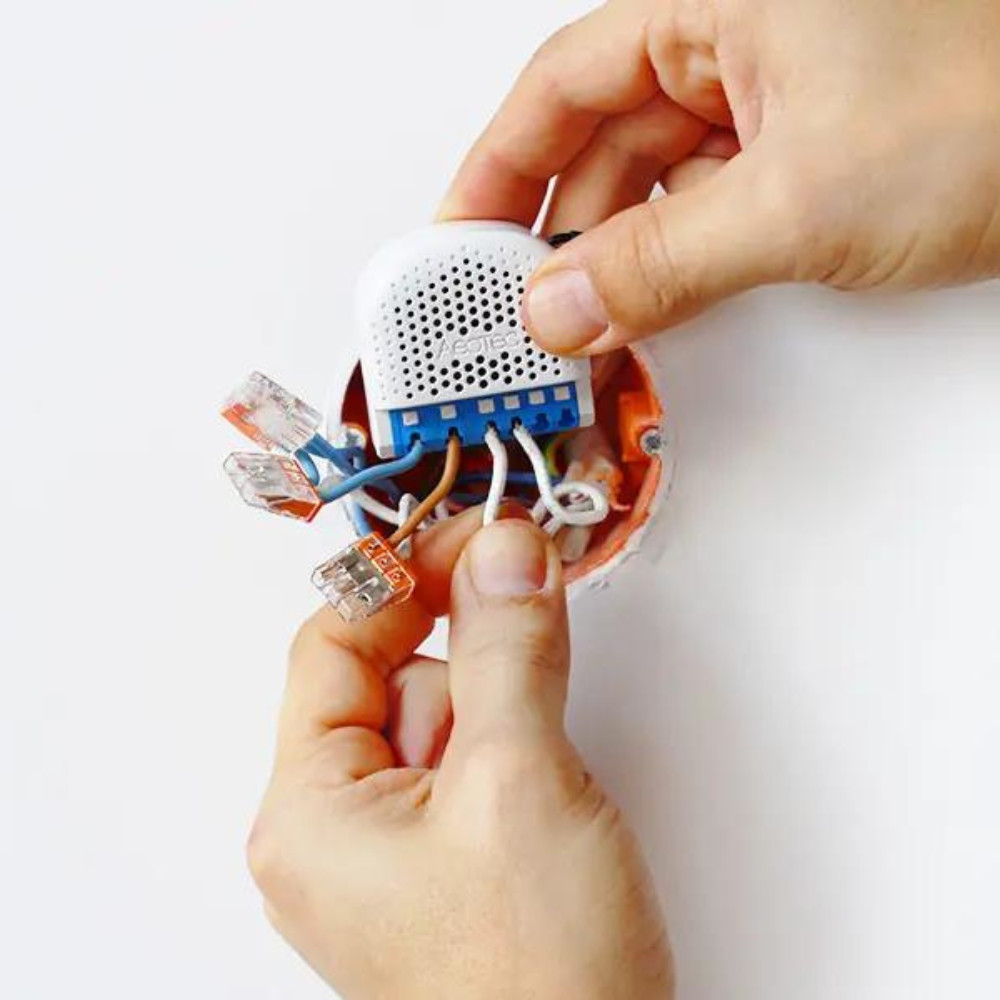

Compatible with the Smart Home ecosystems using Zigbee and Matter protocols, installing Aeotec Pico behind the fittings is quick and easy. The product has been specifically designed to allow professionals to seamlessly integrate the device into the electrical network, taking up only the space required in standard fitting boxes.
The Aeotec Pic'n Go design is fitted with standardised spring-loaded connectors to ensure easy and reliable installation - no screwdriver is required for installation. In addition, its durable construction, reliability and performance are aligned to high standards, ensuring it will stand the test of time within your connected smart home network.
Pico
The Aeotec Pico Switch is equipped with a range of features for SmartThings compatibility. From scheduled lighting to seamless integration into the SmartThings ecosystem, it offers a world of convenience and control in your Smart Home environment. Users can easily create custom schedules and scenes that fit their lifestyle. Consequently, this allows them to create the perfect ambience for any occasion. Whether it's a cosy movie night or a lively get-together, Aeotec Pico will be your partner in making the most of your home.
Parameters | Pico Switch
|
Number of Outputs | 1 |
Power Supply | 110-240V AC |
Max. Resistive Switching Current | 16A |
Max. Capacitive Switching Current | 10A |
Max. Inductive Switching Current | 3.6A |
Max. Switching Voltage | 240V |
Over Heat Protection | Yes |
Wall Switch Inputs | S1 & S2 |
Compatible Switches | Momentary (NC/NO) Toggle switch 2 way switch SPDT switch |
Scope of Delivery | Pico Switch 2x Wago clamps DIN Rail mount Manual |
Operating Temperature | 32°F to 104°F / 0°C to 40°C |
Operating Humidity | 8% to 80% |
Operating RF Distance | Up to 100m outdoors
|
Learn more about the SmartThings ecosystem:
SmartThings is Samsung's IoT platform that lets you connect smart devices of different technologies and brands, control and time them smartly from one app, one platform.
Compatible with thousands of devices from hundreds of brands, its broad compatibility is what makes the Aeotec Smart Home Hub and SmartThings platform so powerful. Whether it's audio systems or security systems, smart lighting or smart heating, the Aeotec Smart Home Hub helps you build a perfectly personalised smart home.
One app to control it all: SmartThings
Whichever device you connect, whichever routine you automate, you can control them all through the SmartThings app.
Available for Android as well as Apple iOS and iPadOS, the SmartThings app lets you quickly create the routines and automations you need, connect new devices, control everything you've connected, get notifications when something happens at home, and control everything you've connected.
With the SmartThings app, you can automate your own routines to make everyday life more convenient. This means you can set a sequence of events - no need to get up from the sofa to turn the heating on or off, if the sensor detects a temperature change it signals the control panel and other appliances, which then automatically turn the heating on, aiming for the temperature you set, all the while turning the lights down and creating a cosy atmosphere.
The Aeotec Smart Home Hub can be connected directly to Z-Wave, Thread, ZigBee and network (http) devices. Thanks to the SmartThings software, connecting SmartThings certified devices is child's play, whether it's a sensor, washing machine, air conditioner or even a TV. The built-in Z-Wave electronics ensure that, in theory, any Z-Wave device can be used.
