The Aqara Panel Hub S1 Plus EU is an innovative and stylish solution for wall-mounted smart home control, combining the functionality of a wall switch with the capabilities of a high-end control panel. The device includes two built-in relays and six wireless switch functions, enabling simultaneous control of Aqara devices and automated scenes.
Its 6.9-inch high-resolution touchscreen allows for precise adjustments of lighting color temperature (CCT/RGBIC), curtain positions, and thermostat settings. Additionally, live video feeds from Aqara doorbells and cameras can be viewed directly on the display, facilitating visitor management and real-time communication.
The panel supports Wi-Fi, Zigbee, and Bluetooth protocols, enabling seamless connection to third-party smart home ecosystems like HomeKit, Google Home, Alexa, and Matter.
Key Features
All-in-One Control Panel
The device features two relays and six wireless switch functions, allowing you to manage Aqara devices from a single panel. The display offers an automatically optimized interface based on your home devices, enabling quick and easy adjustments to settings such as lighting color temperature (CCT/RGBIC) or curtain positions.
Matter Bridge and Zigbee 3.0 Hub
The Aqara Panel Hub S1 Plus EU functions as a high-capacity Zigbee hub, supporting dual-band Wi-Fi (2.4GHz and 5GHz). With Matter Bridge, it seamlessly integrates with third-party ecosystems such as Apple Home, Alexa, Google Home, and others.
Camera Streaming
The live video feed from the Aqara G4 Doorbell and other Aqara cameras can be streamed directly on the display. You can see visitors in real time, communicate with them, or unlock Aqara smart locks directly from the panel.

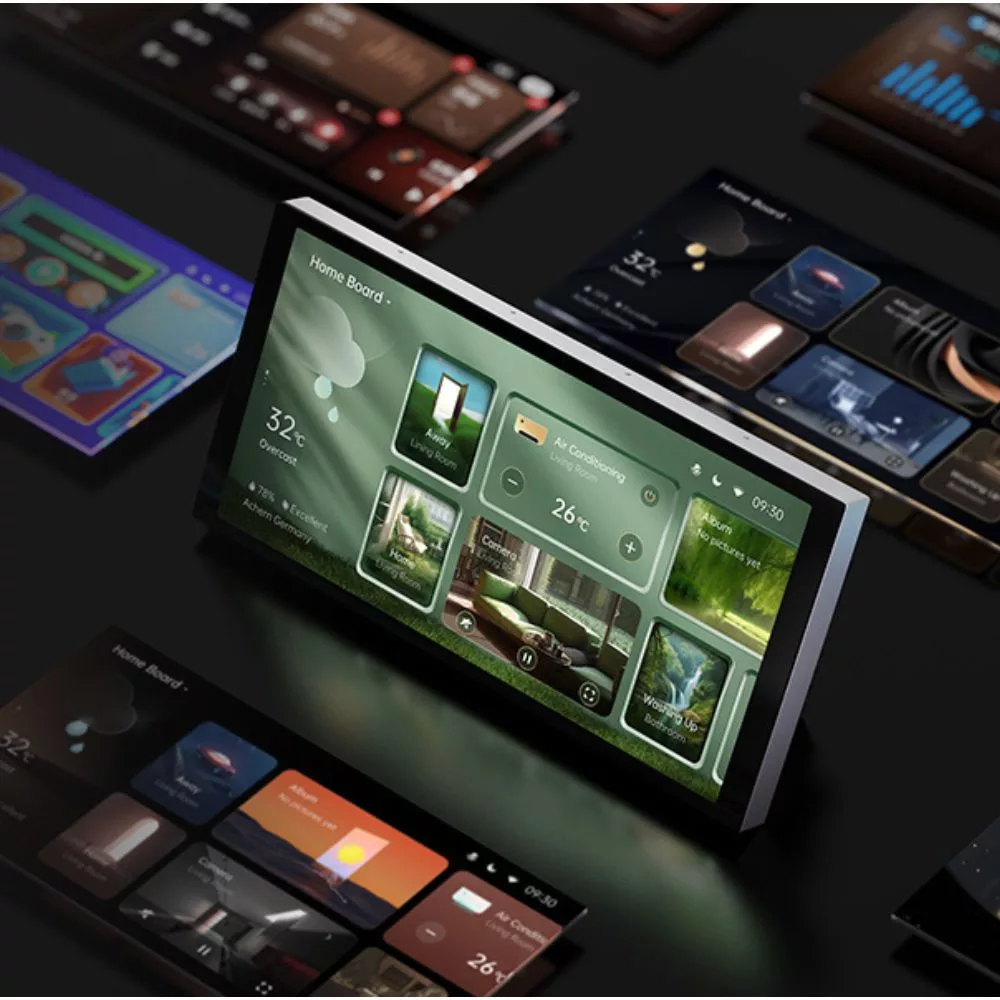

Customizable Dashboards
Users can copy dashboard configurations from the Aqara Home app directly to the panel’s display. Up to 10 custom dashboards can be created, each supporting up to 60 cards for devices or scenes, ensuring flexible and personalized control.
Energy Monitoring
The panel provides real-time energy consumption reports (daily/weekly/monthly), helping users optimize energy usage and promote sustainability.
Proximity Sensor and Automatic Activation
The display automatically activates when someone approaches (up to 2.5 meters away). Its brightness adjusts automatically, reducing light pollution while ensuring optimal visibility and protecting your eyes.
Specifications
Product Name: Panel Hub S1 Plus EU
Model: MP-K03D
Dimensions: 172 × 86 × 42.2 mm
Wireless Protocols: Wi-Fi IEEE 802.11 a/b/g/n/ac (2.4GHz and 5GHz), Zigbee IEEE 802.15.4, Bluetooth
Resolution: 1440 × 720
Input Voltage: 200–240 V, 50/60 Hz, max. 8 A (resistive load)
USB-C Connection: 5V, 2A
Operating Temperature: -10°C – 40°C
Operating Humidity: 0–95% relative humidity (no condensation)

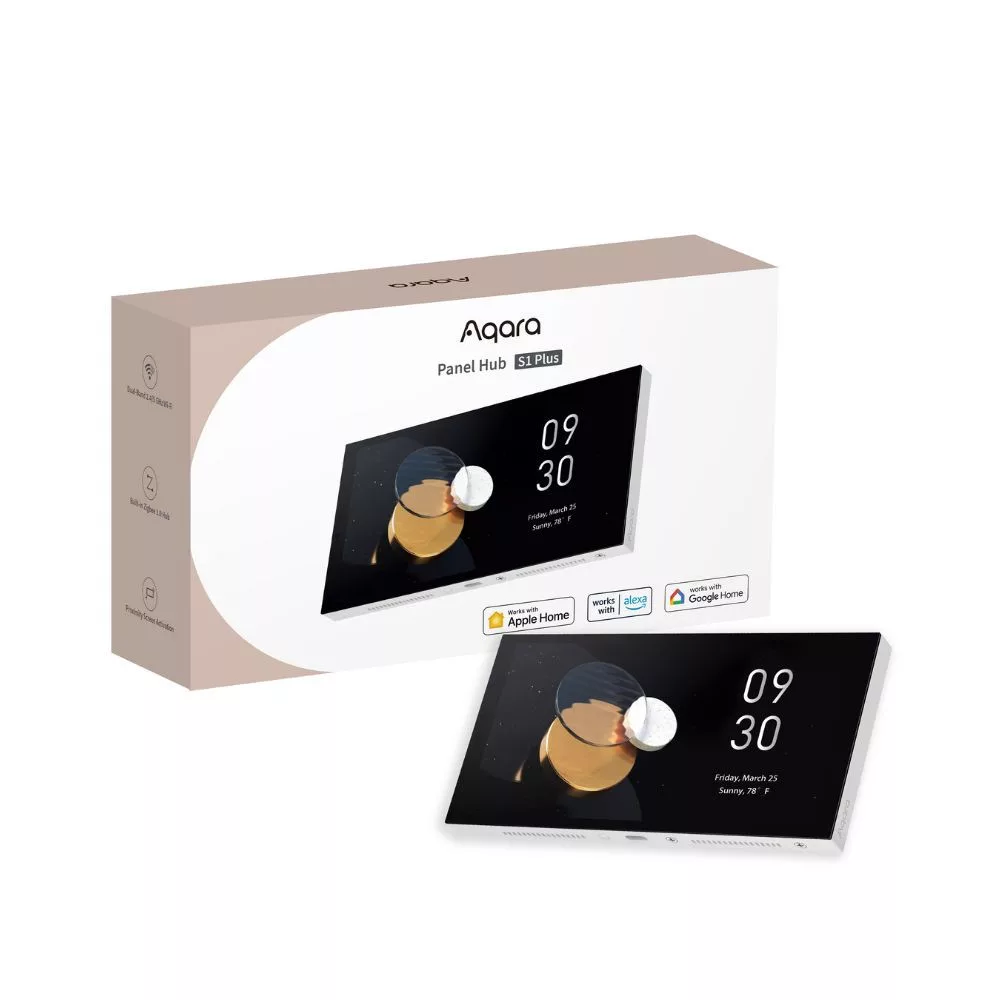

What’s in the Box
- Panel Hub S1 Plus × 1
- User Manual × 1
- Compliance Statement × 1
- Screw Kit × 2
