The Gledopto GL-C-301P Ultra Mini RGB+CCT LED Controller is one of the smallest smart LED lighting systems controller available on the market. With its advanced Zigbee 3.0 protocol, this controller offers seamless integration with popular smart home systems, allowing users to control RGB+CCT (Red, Green, Blue + Color Temperature) LED strips with precision and ease. This 5-channel controller supports both 12V and 24V LED strips, providing flexibility for various lighting setups in both residential and commercial spaces.

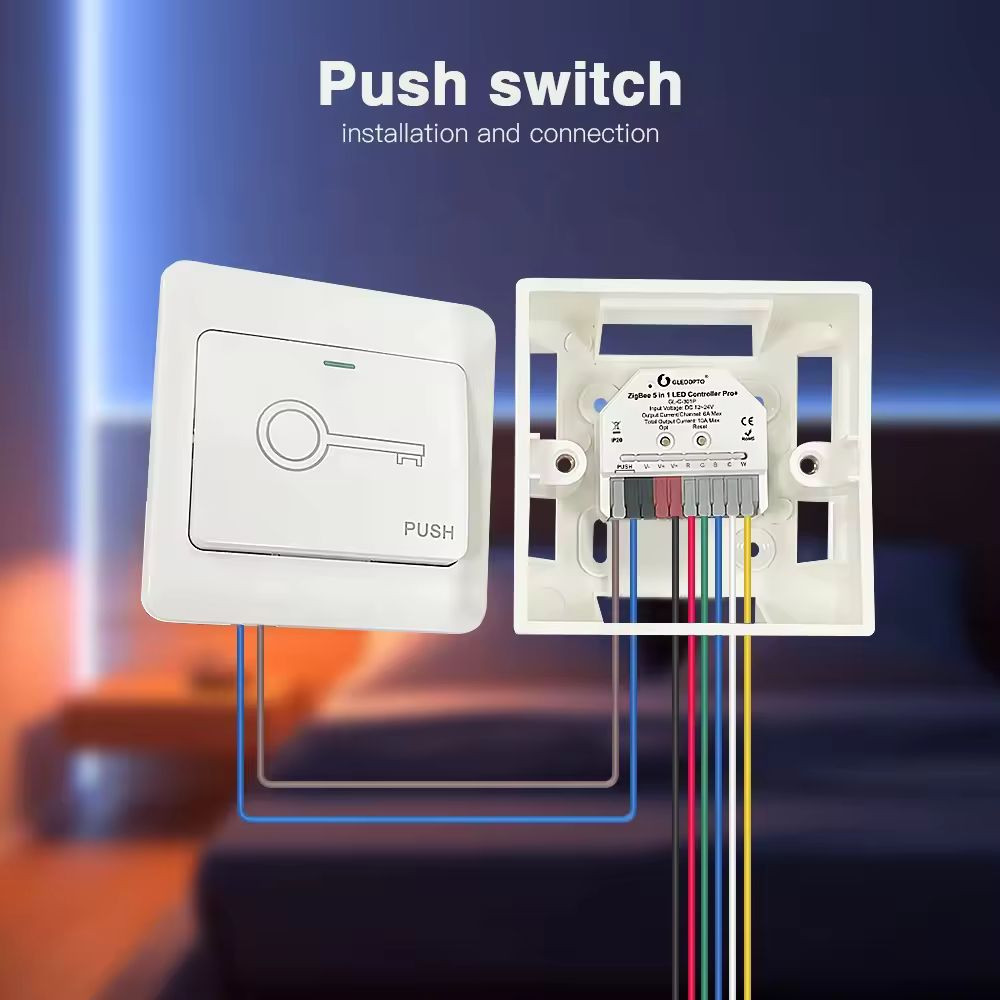

Thanks to its small size, it can be installed in the junction wall boxes, even behind traditional switches.
As all Gledepto Pro devices, it supports Zigbee 3.0 for smart control and integration, and its RF 2.4 GHz receiver can be paired with Gledopto RF remote controllers and wireless wall panels for local remote control.
Brand Introduction
Gledopto is a popular smart home brand renowned for its quality smart lighting solutions, offering high quality smart LED bulb and LED lamp products. Their Zigbee Pro and Zigbee Pro+ products are suitable for both 2.4GHz RF local remote control and Zigbee 3.0 smart control.
Zigbee Pro products offer particularly broad, seamless integration with Philips Hue, SmartThings Zigbee hubs, among others, but most Zigbee Pro solutions are also compatible with other standard Zigbee 3.0 gateways.
Gledopto's products are renowned for their quality materials and design, reliability, and good compatibility with various smart home ecosystems.
Key Features
- Zigbee 3.0 Compatibility: The GL-C-301P supports Zigbee 3.0, ensuring reliable and secure communication with a wide range of Zigbee hubs, including Philips Hue, SmartThings, and more.
- RGB+CCT Control: Manage both color and color temperature (warm to cool white) of your LED strips, perfect for creating dynamic lighting environments.

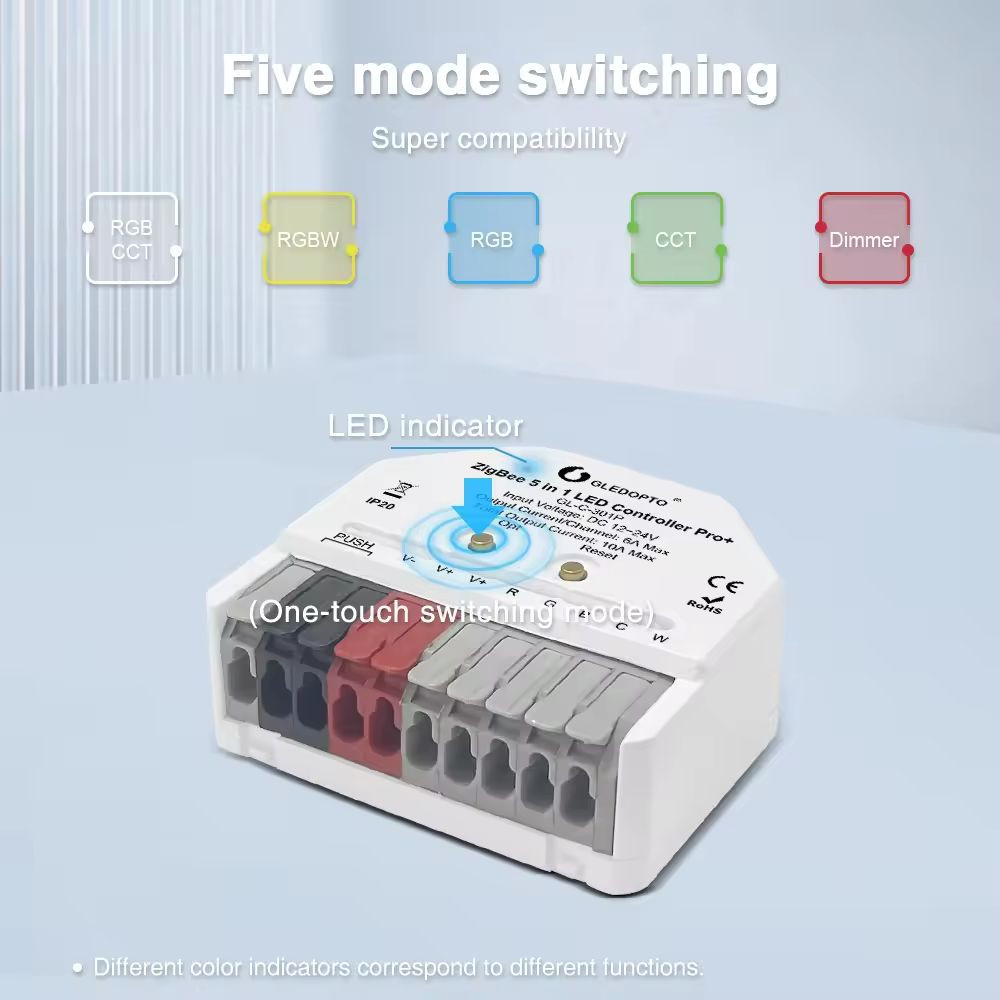

- 5 modes of operation available: RGBCCT / RGBW / RGB / CCT (warm and cold white) / Dimmer (for single color LED strips)
- Wide Voltage Range: Compatible with both 12V and 24V DC LED strips, offering flexibility for different installation requirements.
- Easy Integration: Ideal for integration into smart home systems, providing remote and automated control of lighting.

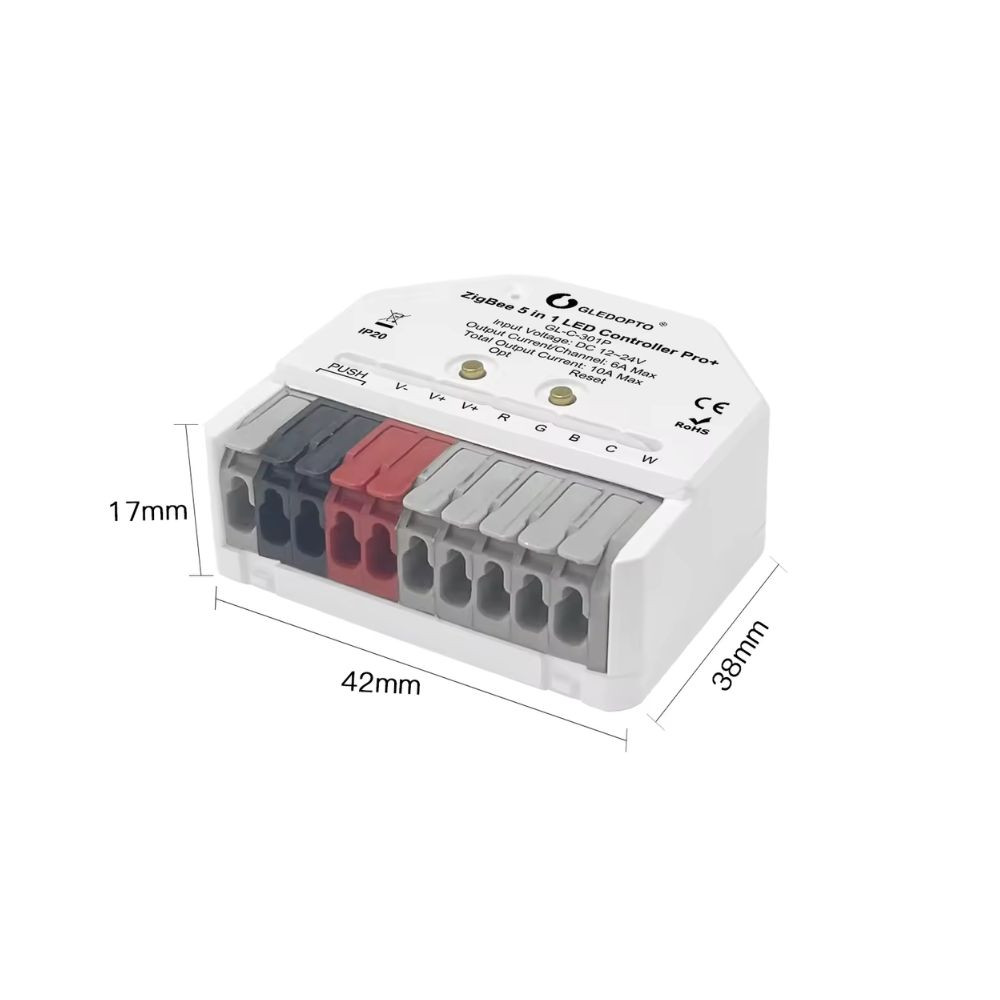

- Compact Design: Designed to be small and compact, it fits easily into various installation scenarios, induding flush mounted wall boxes.
Smart Home Protocols and Integrations
The GL-C-301P uses Zigbee 3.0, which allows for seamless integration with a variety of smart home ecosystems.
The device requires a compatible Zigbee gateway for remote control or smart home integration. Once connected, users can control their lighting through popular platforms such as Philips Hue, SmartThings, and other Zigbee-enabled systems.
Technical Specifications

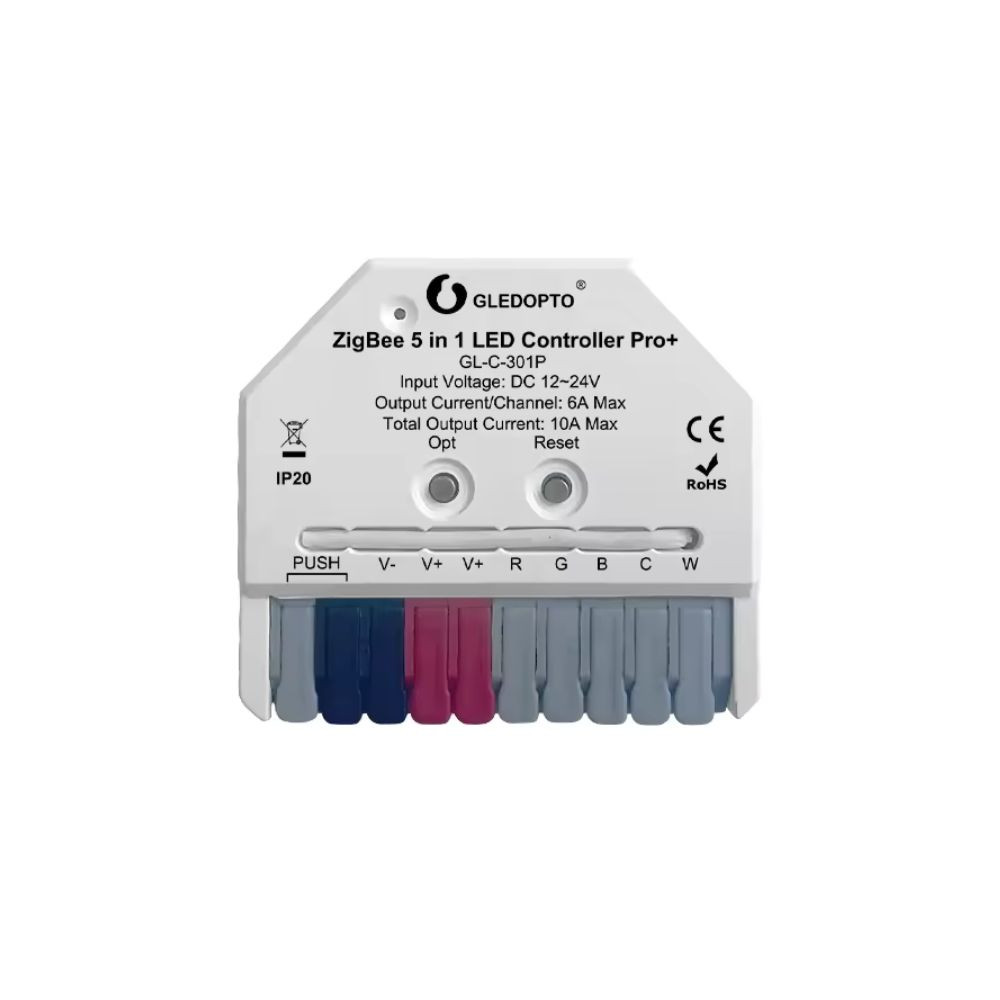

- Model: GL-C-301P
- Input Voltage: DC 5V-24V
- Supported LED strips: RGBCCT / RGBW / RGB / CCT (warm and cold white) / Dimmer (for single color LED strips)
- Output Current: 6A/channel, total max. 10A
- Protocol: Zigbee 3.0
- Control Distance: 30m (open area)
- Operating Temperature: -20°C to 45°C
The Gledopto GL-C-301P Zigbee 3.0 RGB+CCT LED Controller is an excellent choice for users looking to enhance their smart lighting experience with precise control and seamless integration, and looking for a small compact controller.
