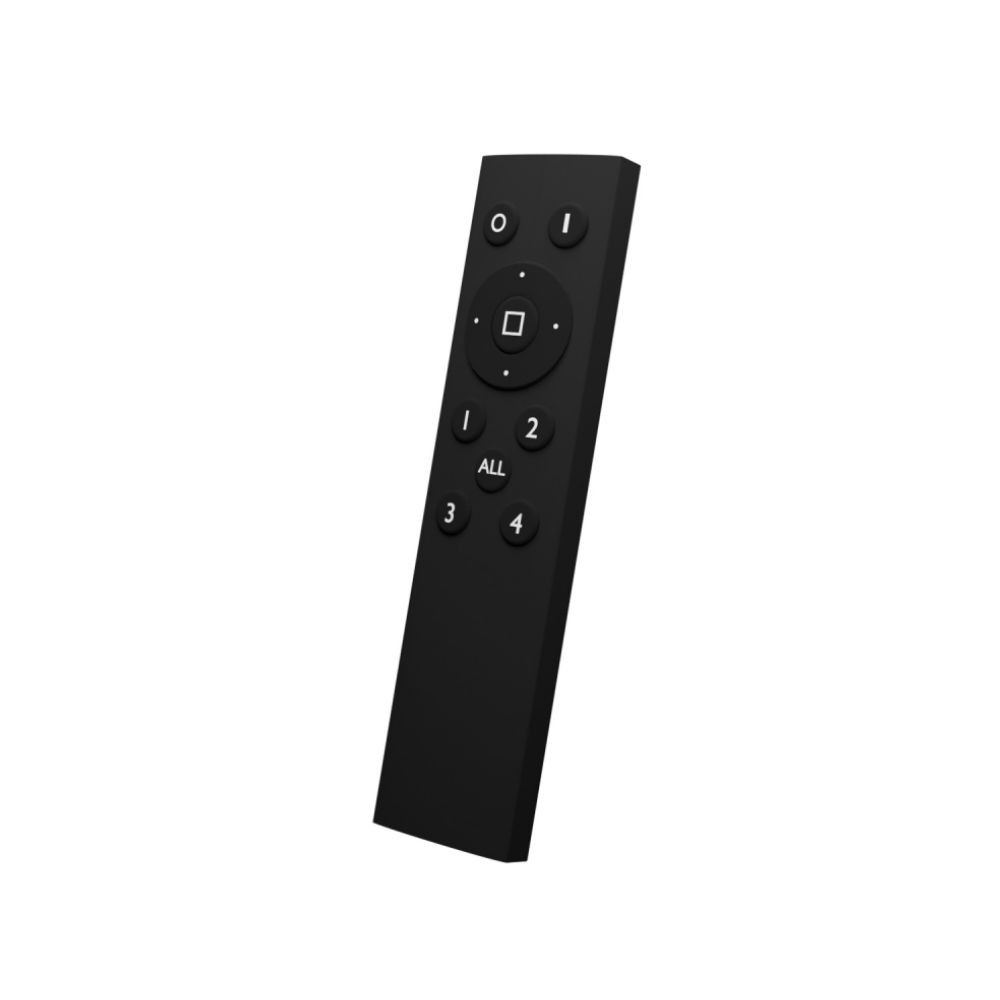

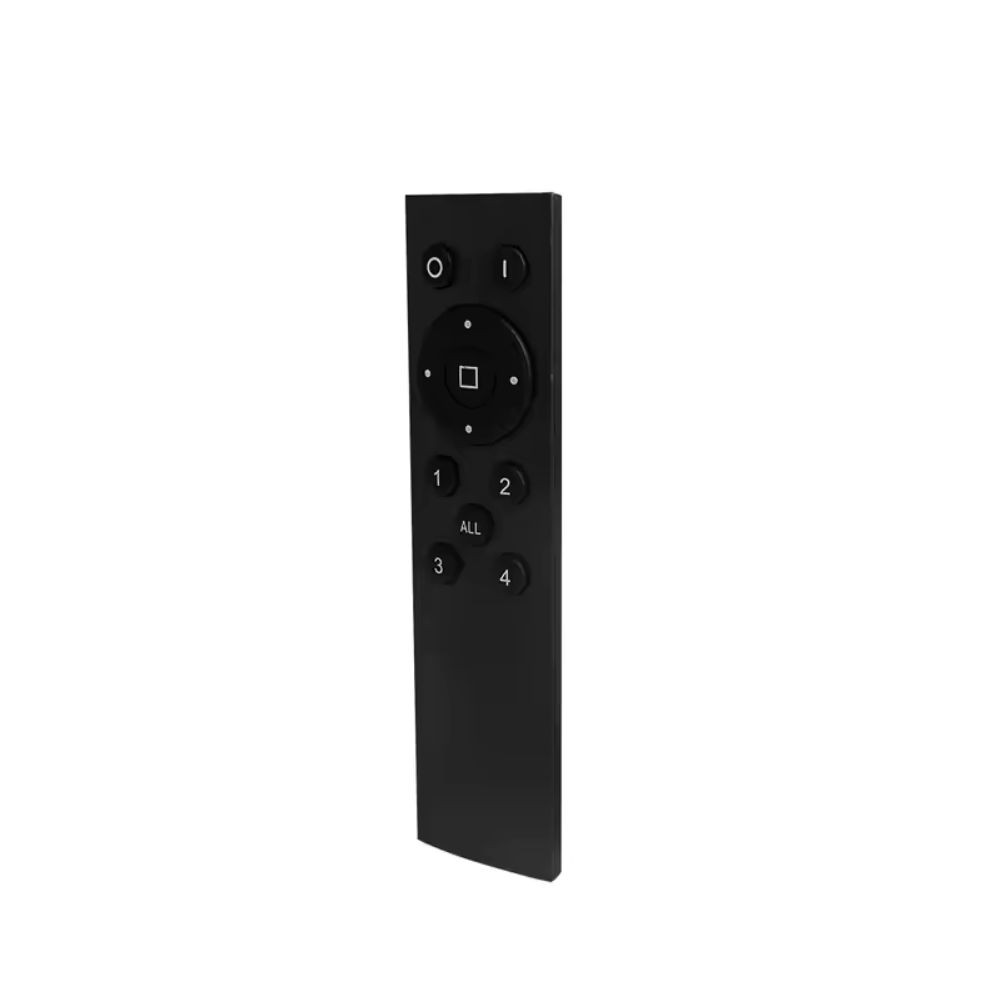

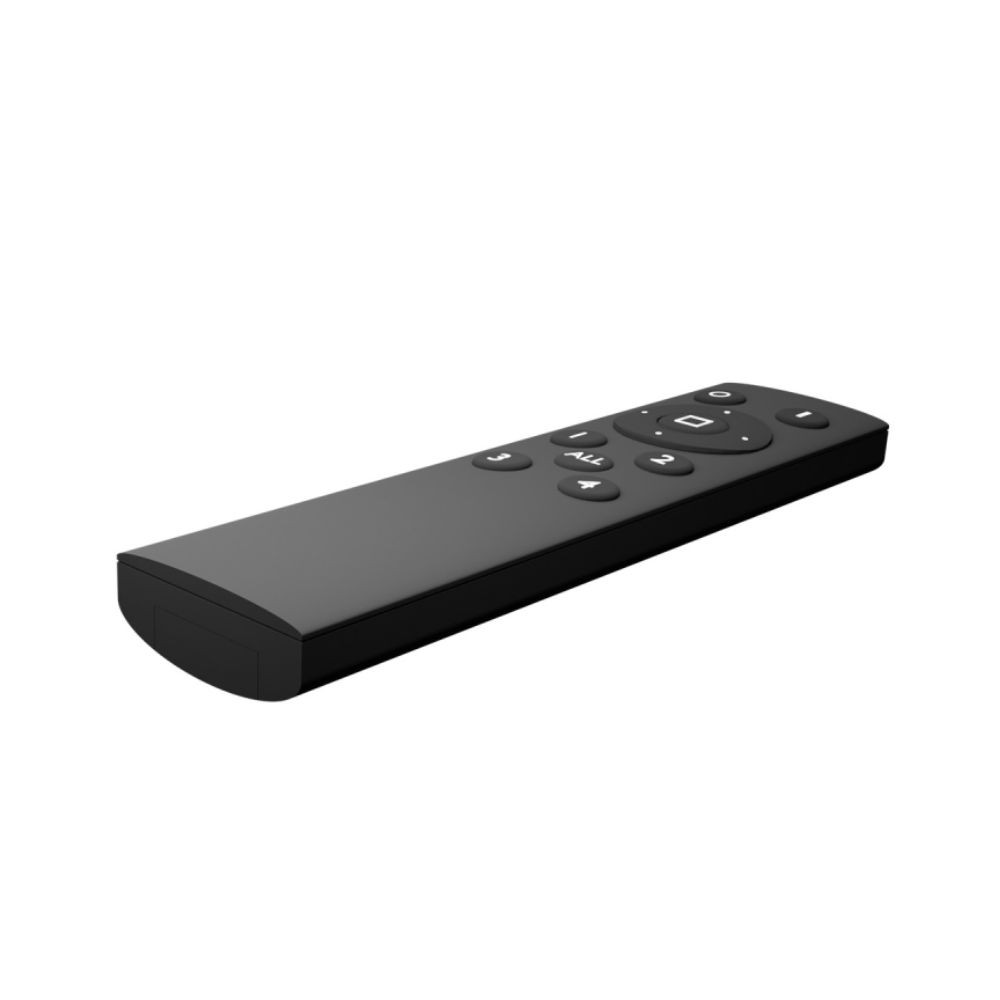

The Gledopto 2.4G RF 4-zone remote control is specifically designed for controlling the Gledopto Zigbee Pro series devices. This wireless RF remote can control up to 4 different smart Gledopto Zigbee Pro LED products or product groups. While this is a portable RF remote, Gledopto also offers a wall-mounted RF remote panel for those who prefer a fixed installation option.
Pairing is a simple process: after powering on the Zigbee Pro lighting, simply press the desired zone button ("I" for zones 1-4) on the remote control. The successful pairing is confirmed when the lighting turns on. The remote can control more than four devices if multiple devices are assigned to one zone (and controlled together), for example by creating a separate zone for each room.
Product Features:
This RF remote is only compatible with Gledopto Pro and Plus products, not with standard Zigbee devices, as only these models include a 2.4GHz RF receiver alongside the Zigbee chip.
Compatible with Gledopto Pro LED controllers, LED bulbs, LED spotlights, LED floodlights, and LED garden lights.
Milight compatible.
Supports group control without a hub and can control up to 4 zones or groups of devices.
Capable of adjusting brightness and color temperature:
- Brightness Control: Functions as a dimmer for flexible brightness adjustment.
- Color Temperature Control: Adjusts between cool white and warm white settings for white light control.
Button Functions:
- O: Power On
- I: Power Off
- Brightness +: Increases brightness
- Brightness -: Decreases brightness
- All Groups: A short press controls all groups simultaneously
- Groups 1, 2, 3, 4: A short press selects the desired group
- Right Arrow: Steps forward through functions
- Left Arrow: Steps backward through functions
- Function Switch Button: A short press switches the functions of the left and right arrows
Compatibility and Integration:
The GL-RC-007 remote control is compatible with the following lighting systems:
Technical Specifications:
- Model: GL-RC-007
- Input Voltage: 3V
- Standby Current: <2uA
- Battery Type: 2 × AAA batteries (1.5V)
- Frequency: 2.4GHz
- Wireless Signal Power: 6dB
- Material: PC (Polycarbonate)
- Waterproof Rating: IP20
- Operating Temperature: -20 ~ 45 ℃
- Dimensions: 16 × 38 × 151 mm
