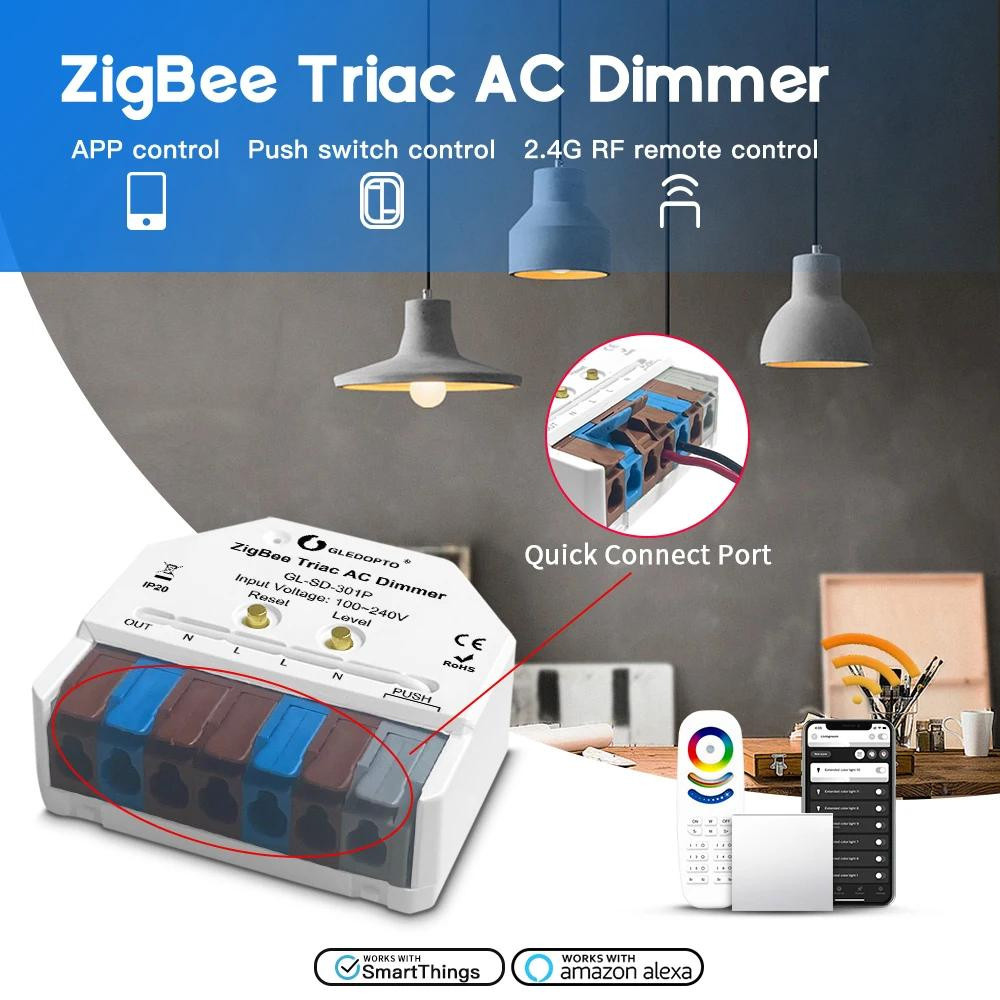

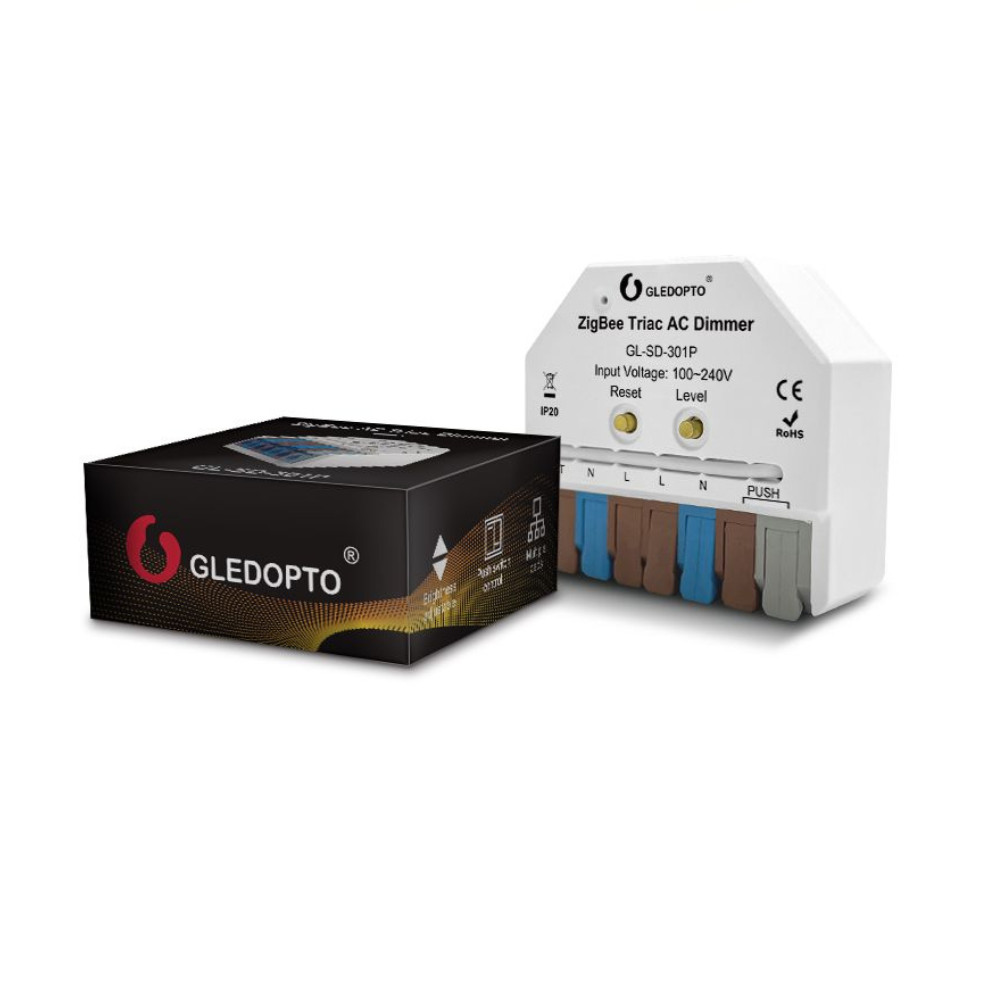

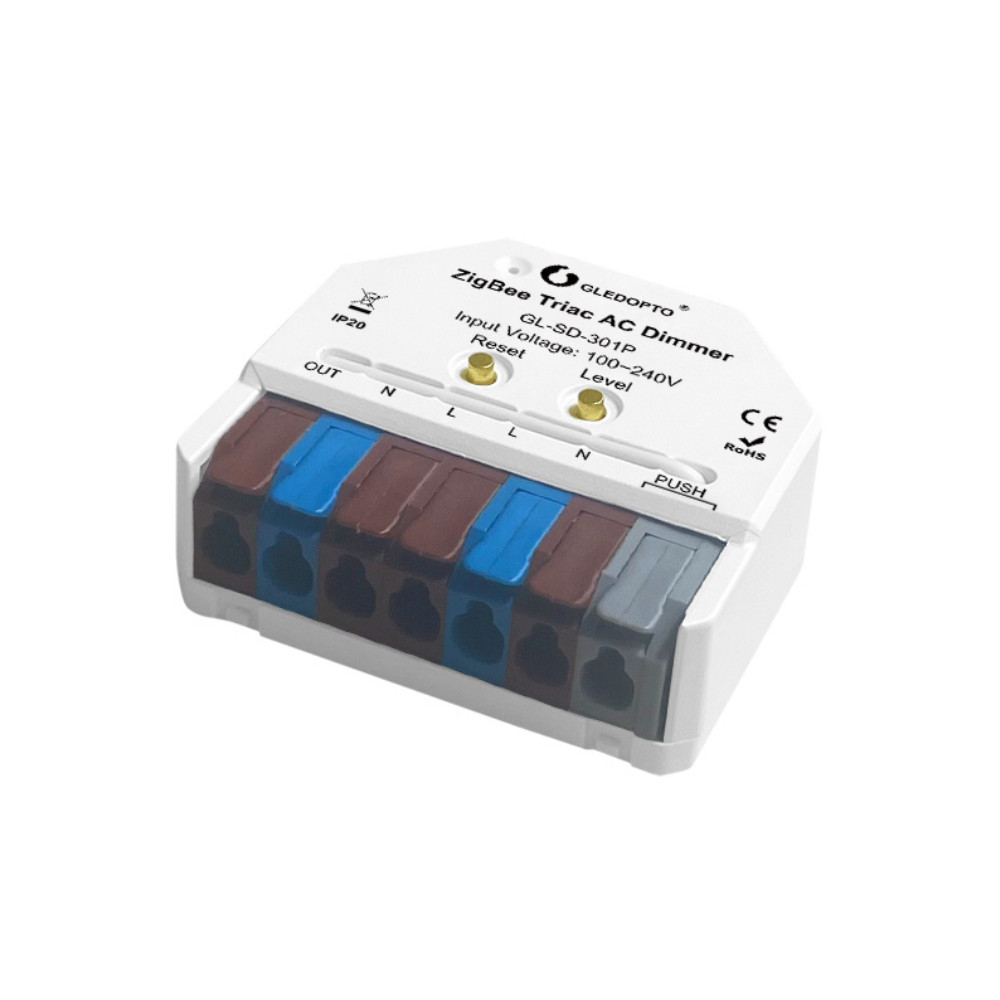

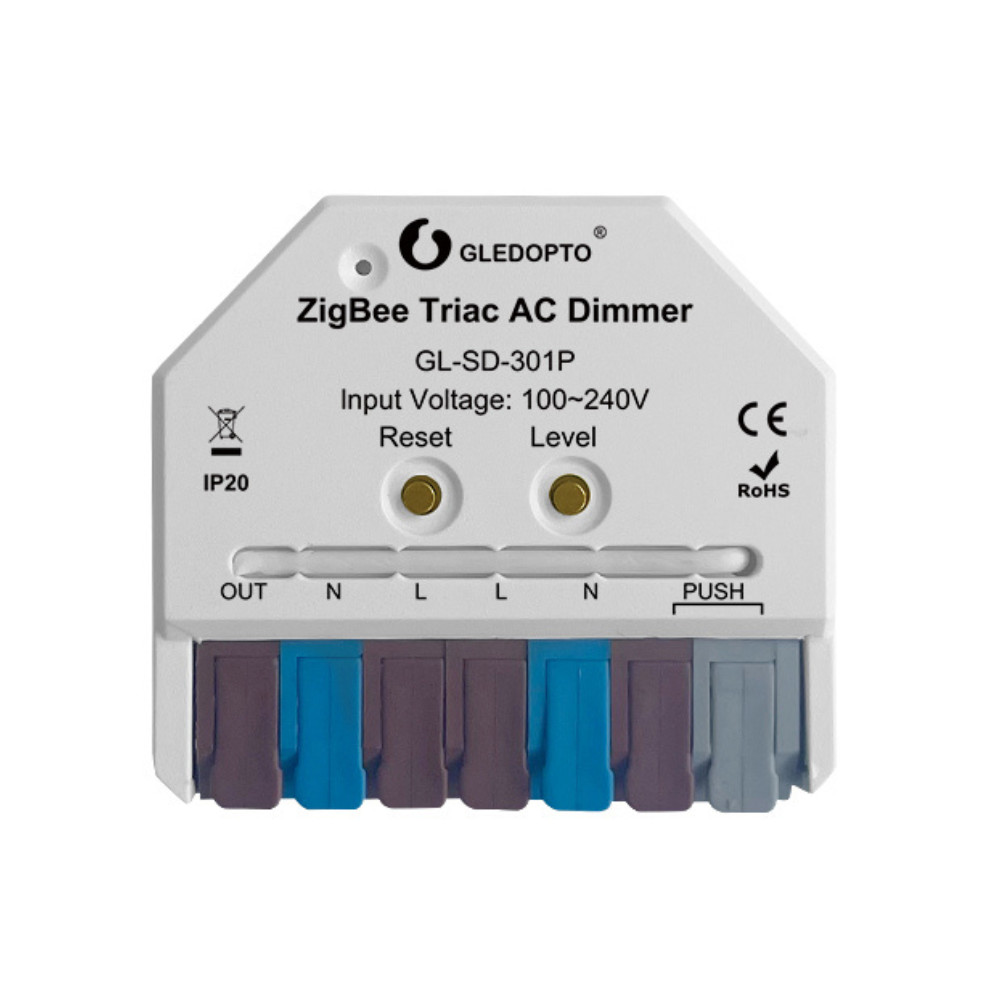

The Gledopto GL-SD-301P is an ultra mini ZigBee Smart AC light dimmer module that can be installed even into a wall junction box. Gledopto's high quality dimmer controller is compatible with Philips Hue and most Zigbee 3.0 gateways. This dimmer operates at 230V and can handle up to 400W of power. With the push-button dimming function, you can easily control the LED lighting to get the right brightness every time.
Thanks to the switch inputs, it can also be controlled from wall-mounted push-button switches. Its embedded 2.4GHz RFreceiver can be paired with Gledopto's compatible remote controllers and wired / wireless wall panels.
Brand Introduction
Gledopto is a popular smart home brand renowned for its quality smart lighting solutions, offering high-quality smart LED bulb and LED lamp products. Their Zigbee Pro and Zigbee Pro+ products are suitable for both 2.4GHz RF local remote control and Zigbee 3.0 smart control.
Zigbee Pro products offer particularly broad, seamless integration with Philips Hue, SmartThings Zigbee hubs, among others, but most Zigbee Pro solutions are also compatible with other standard Zigbee 3.0 gateways.
Gledopto's products are renowned for their quality materials and design, reliability, and good compatibility with various smart home ecosystems.
Key Features
- Dual Protocol Support: Compatible with ZigBee 3.0 and 2.4G RF for versatile integration.

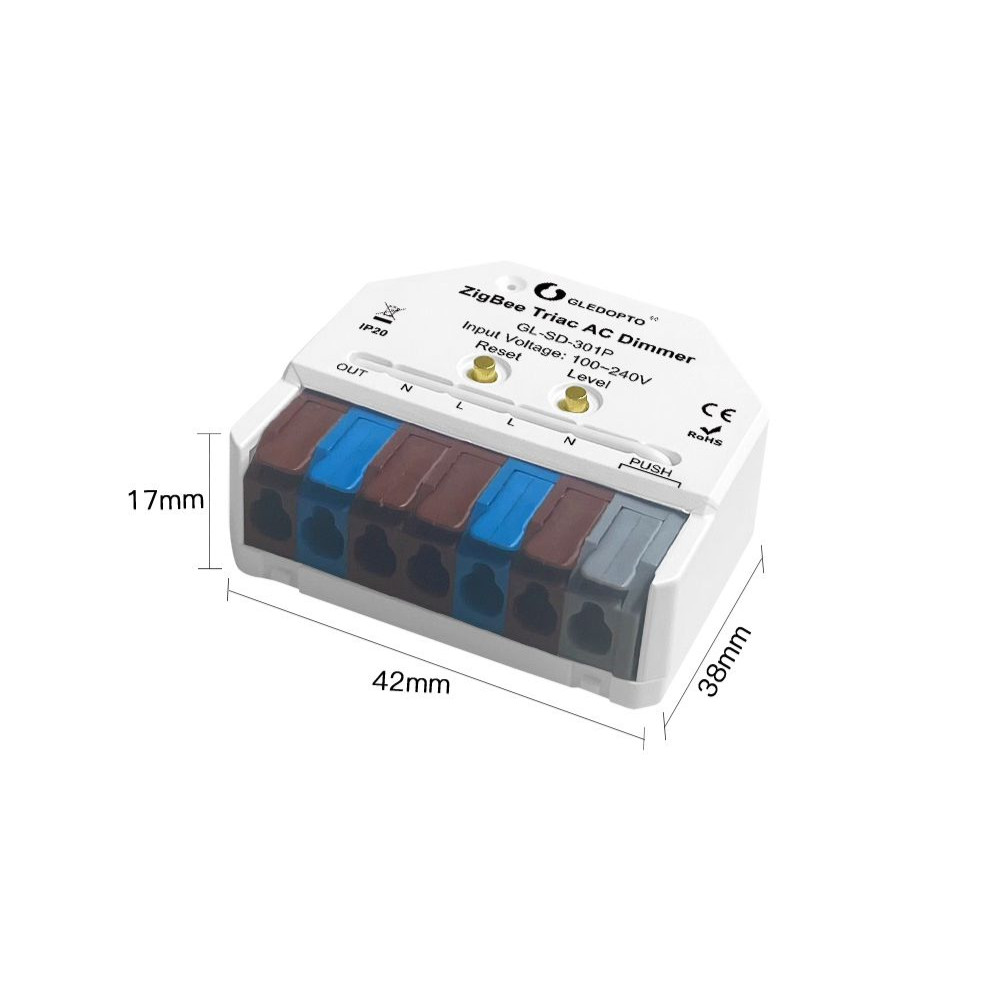

- Compact Design: Ultra-mini size (L42 x W38 x H17mm) for easy installation in tight spaces.
- High Power Handling: Supports up to 400W of load, suitable for various lighting setups.
- Multi-Control Methods: Can be controlled via App, Voice, Push Switch, or Press Button.
- Alexa Compatibility: Works seamlessly with Alexa for voice-controlled dimming.
Smart Home Protocols and Integrations
The device requires a compatible Zigbee gateway for remote control or smart home integration. It works with Zigbee 3.0 hubs, and is compatible with wide range of smart home systems, including Philips Hue, Amazon Alexa, Google Home and Samsung SmartThings.
Technical Specifications
- Product Model: GL-SD-301P
- Input Voltage: 100-240V AC
- Max Load Power: 400W
- Output Channel: 1 Channel
- Protocols: ZigBee 3.0 & 2.4G RF for local remote control
- Remote Control Distance: ≥30 meters
- Working Temperature: -20℃ ~ 45℃
- Material: ABS Anti-fire Material
- Size: L42 x W38 x H17mm
