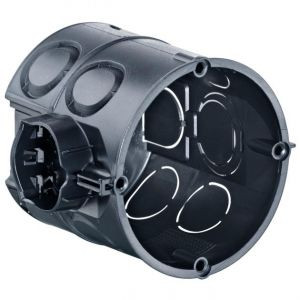

Kaiser Flush-Mounted switch box, with 66mm bigger depth, highly suggested for installing a smart module behind traditional switches. It comes with 4 screw domes.
Depth: 66 mm.
Milling hole diameter: 60 mm.
Pipe entry openings with cut-out openings for cables and DIN EN pipes.
Diameter 20/25 mm.
Fire resistance 650 °C according to DIN VDE 0606.
Protection class IP 2X
Device screw-spacing 60 mm.
Halogen-free.
Fully insulated cable transition
Outbreak openings for cables and DIN EN pipes Ø 20/25 mm for screw and expansion mounting.
Delivery without screws.
