The Shelly LoRa Add-on is a long-range communication expansion module specifically designed for Shelly Gen3 and Gen4 retrofit devices. This module enables reliable wireless communication of up to 5 km in open areas, making it an ideal solution for locations where Wi-Fi or other short-range technologies are insufficient.

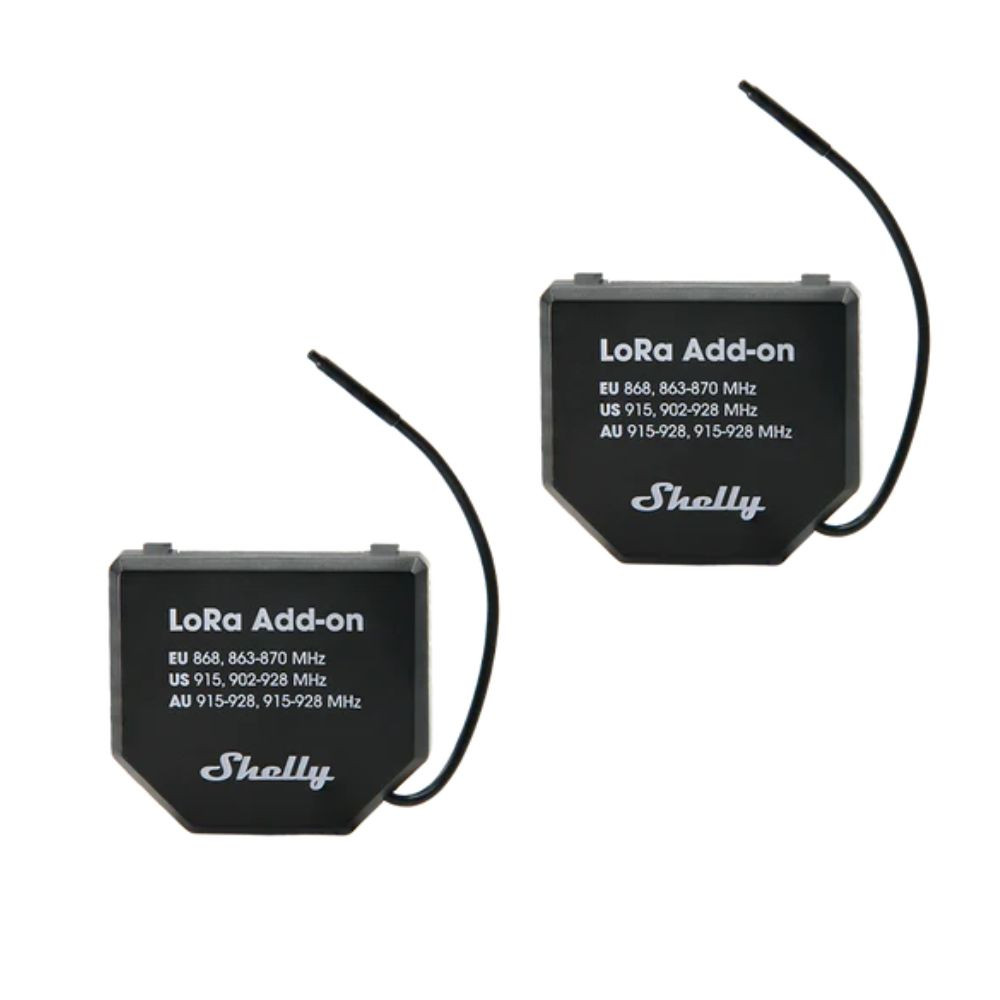

This package contains 2 pcs LoRa Add-on modules, meaning that one module can be installed on each end to establish a point-to-point LoRa connection.
The module designed for Shelly Gen3 and Gen4 devices elevates long-distance connectivity to a new level: it delivers secure performance in open areas and ensures reliable operation even in challenging environments. Thanks to this module, Shelly Gen3 and Gen4 retrofit devices can be used even where other technologies no longer work.
This compact little expansion module is an ideal choice for automating urban infrastructures, managing remote devices, or optimizing precision agriculture. It supports custom scripts, making it fully customizable to meet specific application needs.
Main Features
- Up to 5 km range: Thanks to Shelly’s proprietary LoRa technology, the module can bridge long distances, which is especially useful in agricultural areas, industrial facilities, or urban infrastructures.
- LoRa technology: LoRa technology combined with Shelly’s proprietary protocol ensures strong and efficient performance.
- Compact design: The small-sized device can be easily integrated into existing Shelly systems without taking up significant space.
- External antenna: The module features an external antenna that ensures a stable and strong signal even under challenging conditions.
- Easy installation: The Shelly LoRa Add-on X2 can be easily connected to compatible Shelly Gen3 and Shelly Gen4 retrofit devices and quickly put into operation.
- Script support: Supports custom scripts for specific use cases.
Use Cases
- Gate monitoring and remote control: Supervising gate motors in larger yards or parking areas where there is no Wi-Fi coverage.
- Agriculture: Controlling remote sensors and irrigation systems, monitoring soil moisture and temperature.
- Industrial facilities: Remote monitoring of machines and equipment, optimizing energy consumption. Coverage for distant areas of large halls without Wi-Fi coverage.
- Urban infrastructure: Automating public lighting, controlling traffic systems.
- Residential buildings: Integrating and supervising central systems of multi-unit residential buildings.
Technical Specifications
- Compatibility: Shelly Gen3 and Gen4 devices, not operational on its own; it is a supplementary LoRa communication module only.
- Protocol: Shelly LoRa, EU 868 (863 - 870 MHz)
- Max. range: 5000 meters (in open areas with line of sight)
- Operating temperature: from -20 °C to +40 °C
- Humidity: 30% - 70% RH
- Dimensions: 37 x 42 x 15 mm (±0.5 mm)
Compatible Devices:
- Shelly Gen3 retrofit devices:
- Shelly 1 Gen3
- Shelly 1PM Gen3
- Shelly 2PM Gen3
- Shelly EM Gen3
- Shelly Dimmer 0/1-10V PM Gen3
- Shelly DALI Dimmer Gen3
- Shelly Gen4 retrofit devices:
- Shelly 1 Gen4
- Shelly 1PM Gen4
- Shelly 2PM Gen4
Advantages
- Cost-effective solution: The low energy consumption and long range of LoRa technology help reduce operational costs.
- Flexible integration: The module can be easily integrated into existing Shelly systems, allowing for infrastructure expansion.
- Reliable communication: The external antenna and LoRa technology ensure stable communication even in difficult conditions.
- Scalability: The module allows for easy system expansion with additional devices without requiring significant infrastructure changes.
The Shelly LoRa Add-on X2 is the ideal choice for those seeking a reliable and long-range communication solution for their Shelly systems. Whether it's agricultural applications, industrial facilities, or urban infrastructure, this module provides the necessary connection and control.
