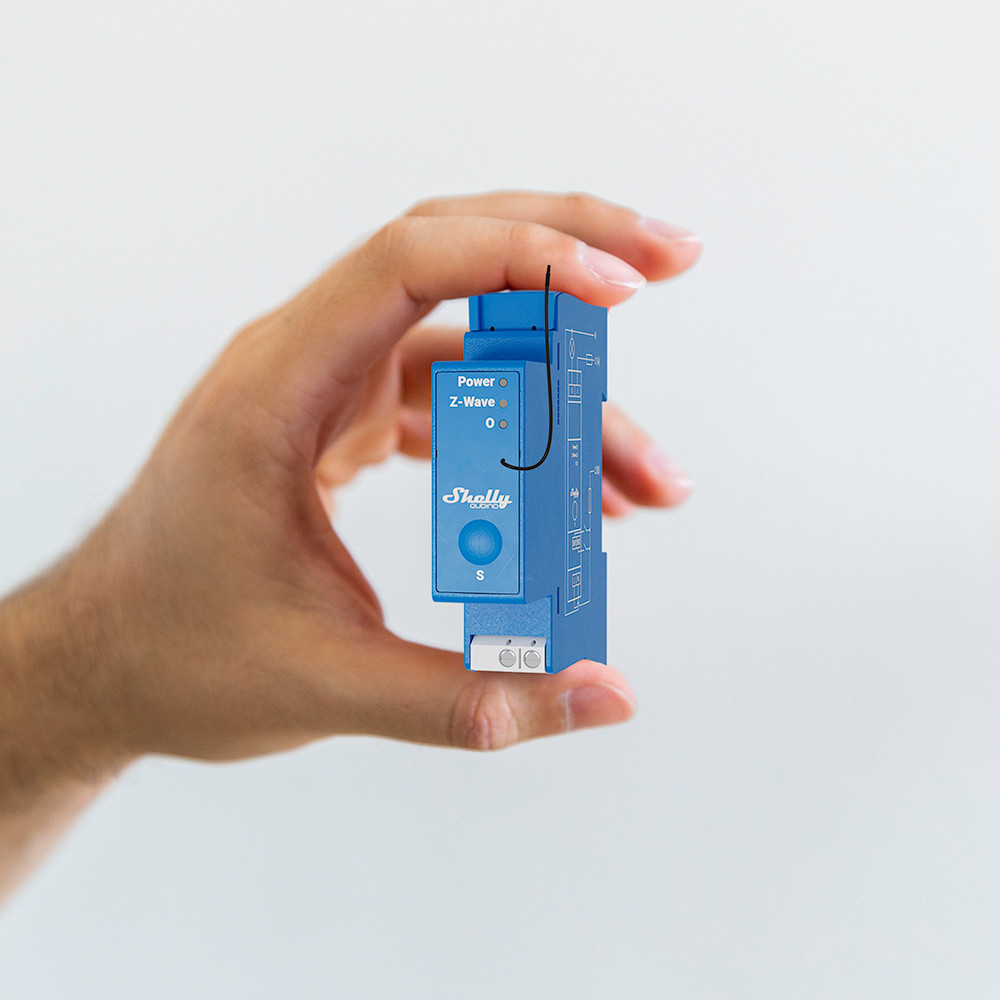

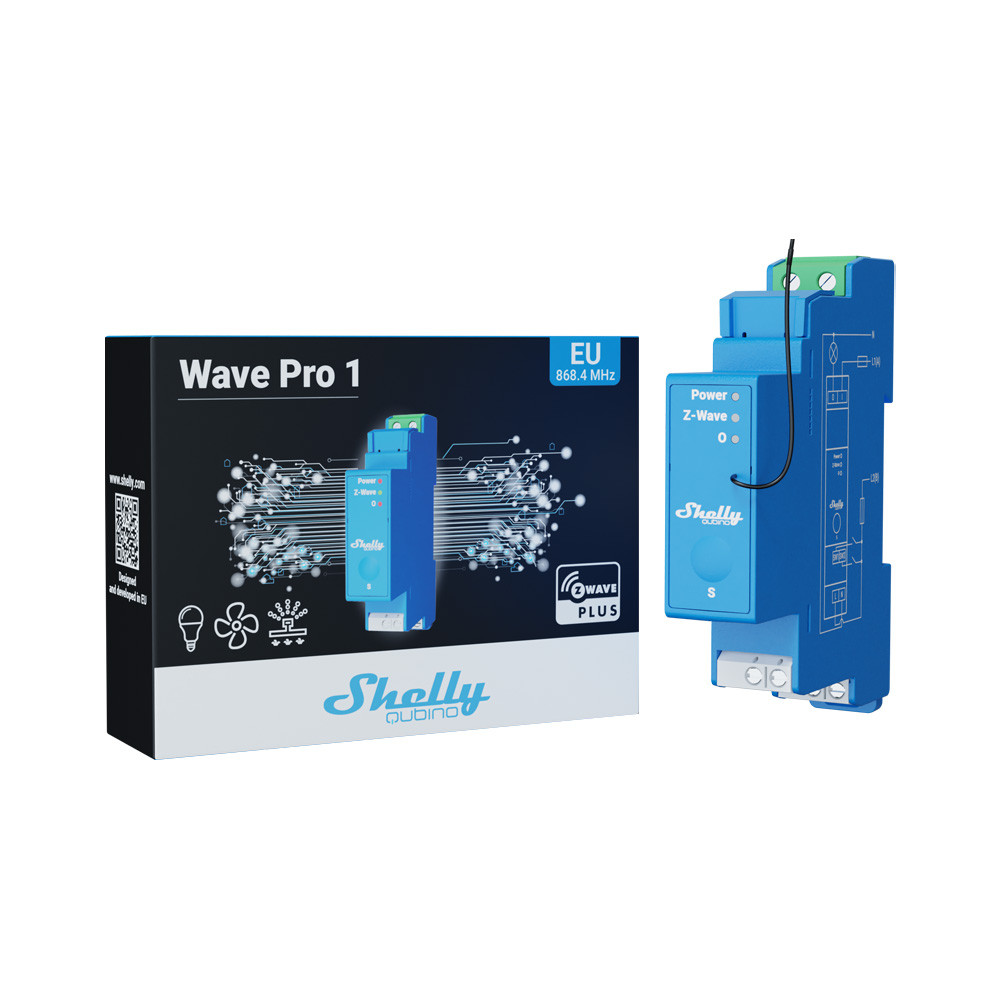

The Shelly Qubino Wave Pro 1 is a state-of-the-art 1-channel DIN rail Z-Wave smart switch designed for sophisticated home and facility automation. It is built to provide high flexibility, enhanced safety, and seamless integration with other smart devices. Here is a detailed breakdown of its features, functionalities, and integrations:
Features and Specifications
1 Output, 16A Capacity: The device supports up to 16A, making it suitable for controlling high-power appliances and lights in both residential and commercial settings.
Potential-Free Contacts (Dry Contacts): The device is equipped with potential-free contacts, allowing it to manage different voltage levels. This feature provides flexibility for various applications, including low and high voltage control.

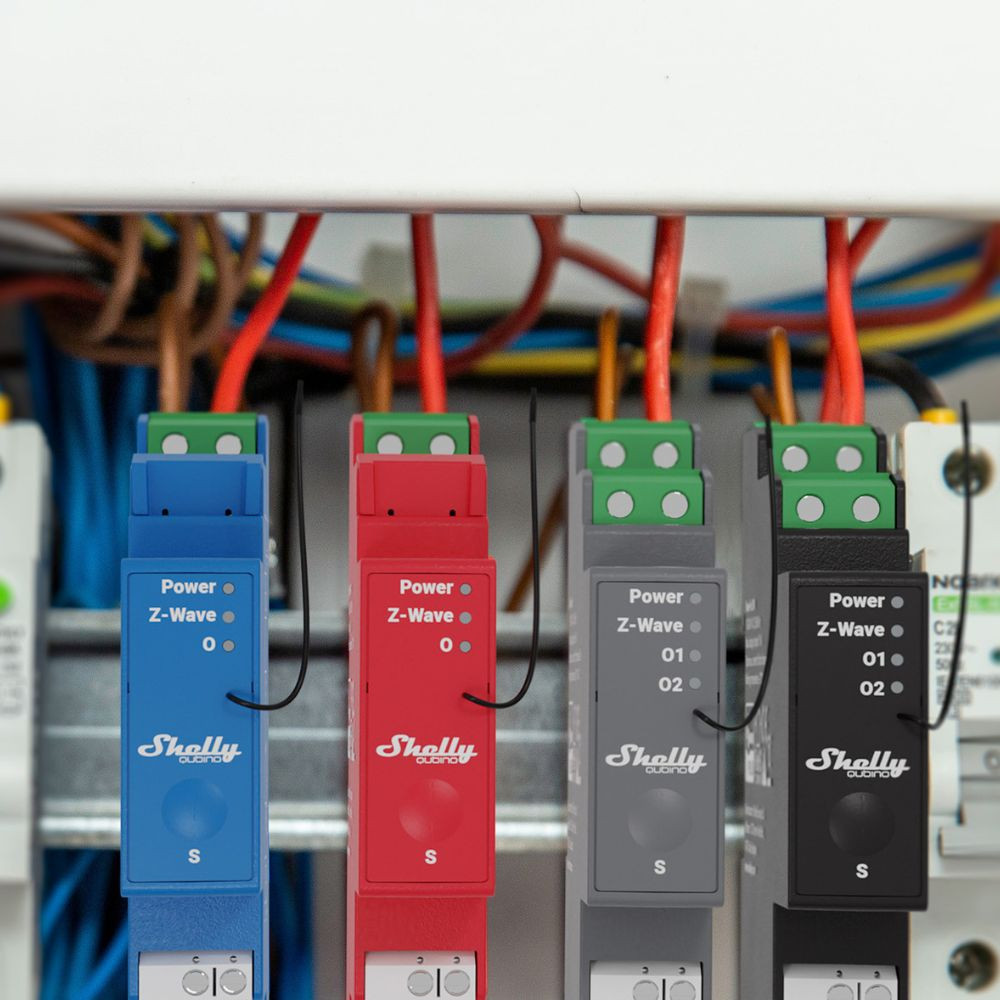

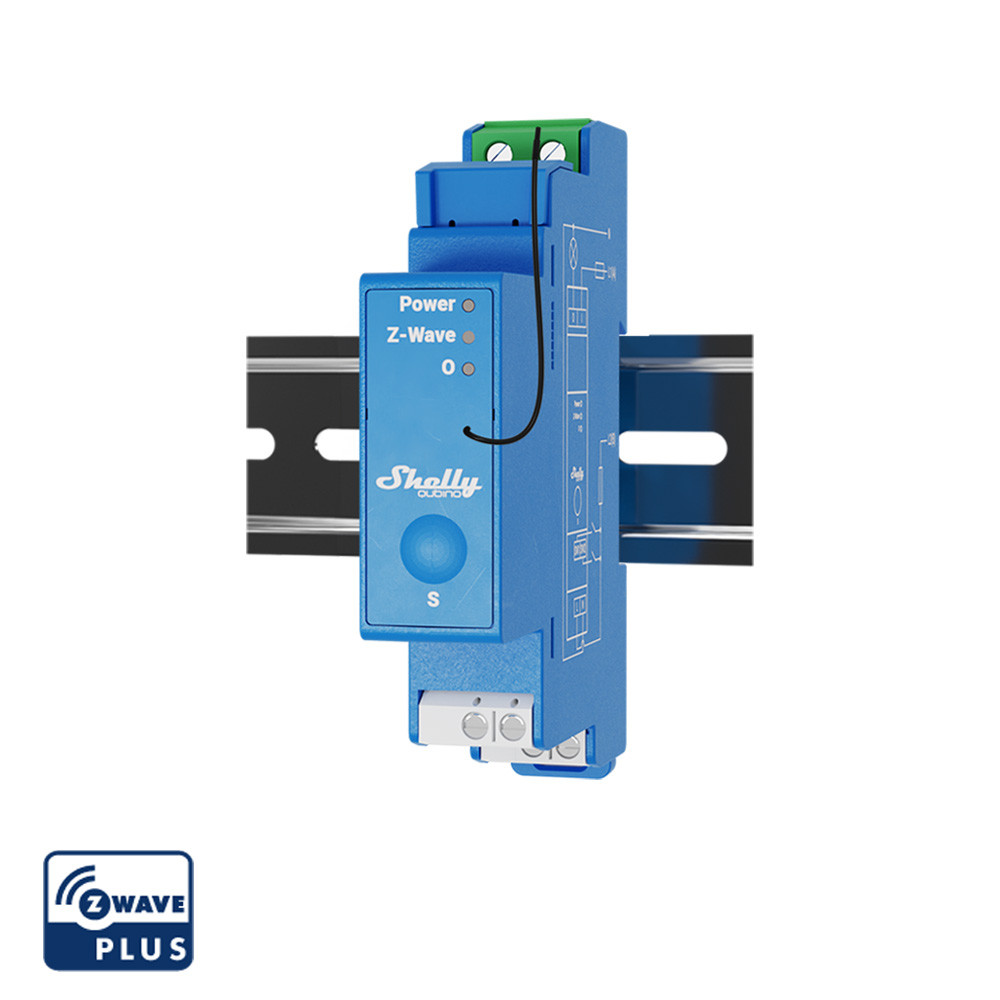

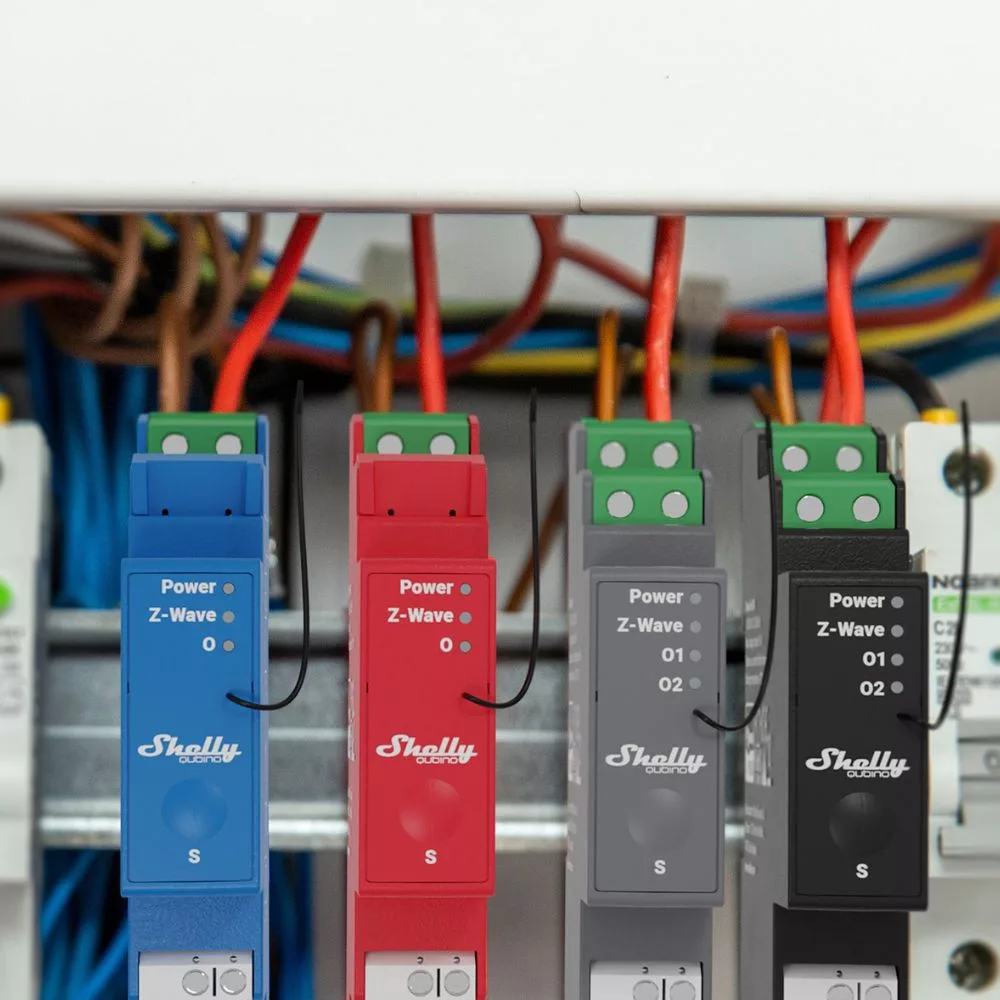

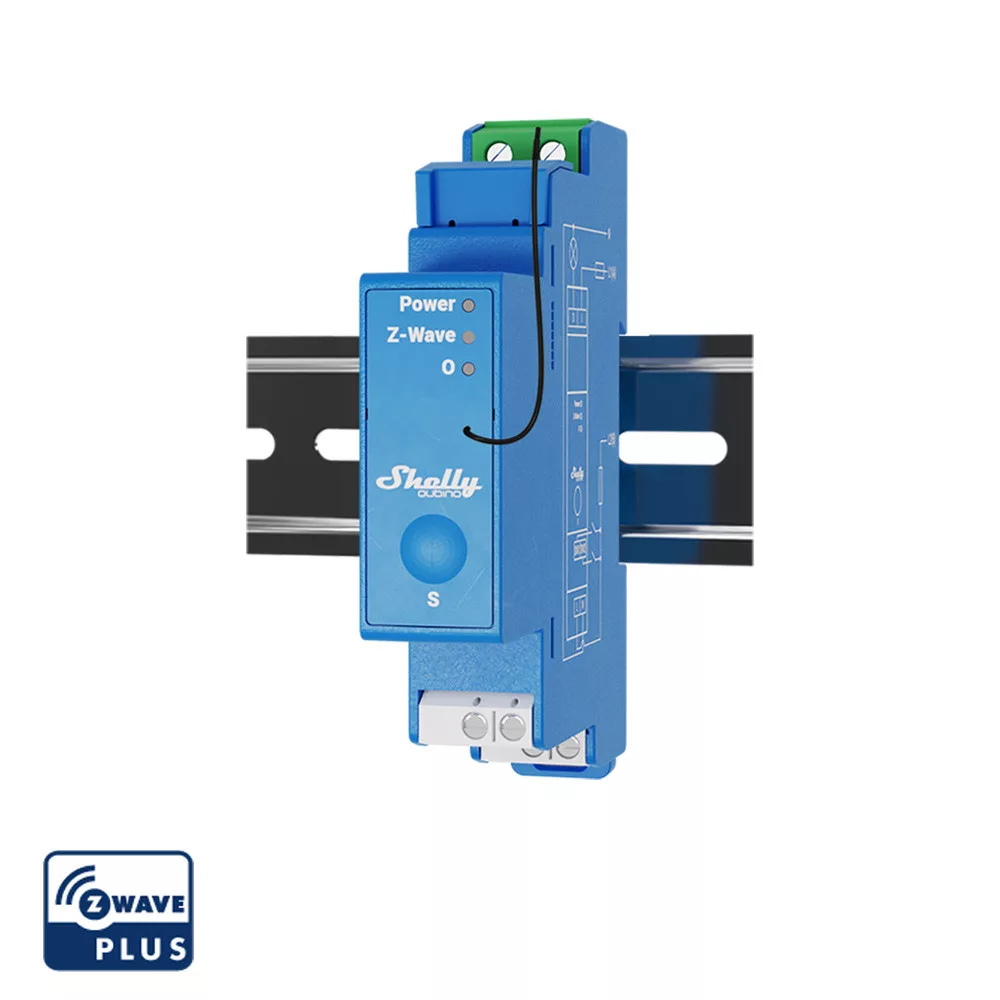

DIN-Rail Mountable: Designed for easy installation inside breaker boxes, the Shelly Qubino Wave Pro 1 conforms to global DIN rail standards, ensuring it fits neatly and securely.
Low Power Consumption: Operating at less than 0.3W, it ensures minimal energy usage, contributing to overall energy efficiency.
Z-Wave 800 Series Technology: Utilizing the latest Z-Wave 800 Series chip, it ensures robust performance and compatibility with a wide range of Z-Wave certified devices.
SmartStart Automatic Setup: This feature simplifies the inclusion process in your Z-Wave network, allowing automatic device detection and configuration.
Security 2 Authenticated (S2): The device supports S2 authenticated encryption, providing the highest level of security for your Z-Wave network, ensuring safe and secure communication.
Over-the-Air Firmware Updates: Regular firmware updates can be performed over the air, ensuring the device remains up-to-date with the latest features and improvements.
Environmental Specifications: It operates efficiently within a temperature range of -20°C to 40°C and a humidity range of 30% to 70% RH. It is also equipped with overheating protection for added safety.
Compact Dimensions: Measuring 94 x 19 x 69 mm, the device is compact yet powerful, fitting easily into standard installations.
Integrations and Hub Compatibility
The Shelly Qubino Wave Pro 1 is highly versatile in terms of integrations and compatibility with various smart home systems:
Z-Wave Gateways: The device is compatible with all certified Z-Wave gateways, including popular options like Samsung SmartThings, Fibaro, and Vera. This ensures seamless integration into existing smart home ecosystems, providing users with centralized control and automation capabilities.
Smart Home Platforms: By integrating with Z-Wave gateways, the Shelly Qubino Wave Pro 1 can be controlled via popular smart home platforms like Google Home and Amazon Alexa, allowing for voice control and advanced automation scenarios.
SmartStart Technology: The SmartStart feature allows for easy inclusion into your Z-Wave network. Simply power on the device and it will be automatically detected and configured by your Z-Wave hub, streamlining the setup process.
Extensive Device Compatibility: The device works with over 4,000 Z-Wave certified devices, making it highly adaptable for various automation scenarios. Whether you need to control lights, appliances, or other electrical devices, the Shelly Qubino Wave Pro 1 can handle the task efficiently.
Local and Remote Control: Through the Z-Wave network, users can control the device locally or remotely using a smartphone or tablet. This flexibility ensures that you can manage your home or facility’s automation system from anywhere, at any time.
Use Cases
The Shelly Qubino Wave Pro 1 is designed to provide dynamic control for a variety of applications:
Lighting Automation: Automate lighting schedules to enhance energy efficiency and convenience. For instance, lights can be programmed to turn off automatically when the premises are unoccupied, reducing energy wastage.
Appliance Control: Manage power supply to appliances with precision, using smart schedules to turn devices on or off at specific times, thereby optimizing energy use and enhancing safety.
Office and Commercial Applications: Perfect for automating lighting and other systems in commercial spaces. Set custom schedules for different floors or areas, ensuring that lighting and other systems operate only when needed.
