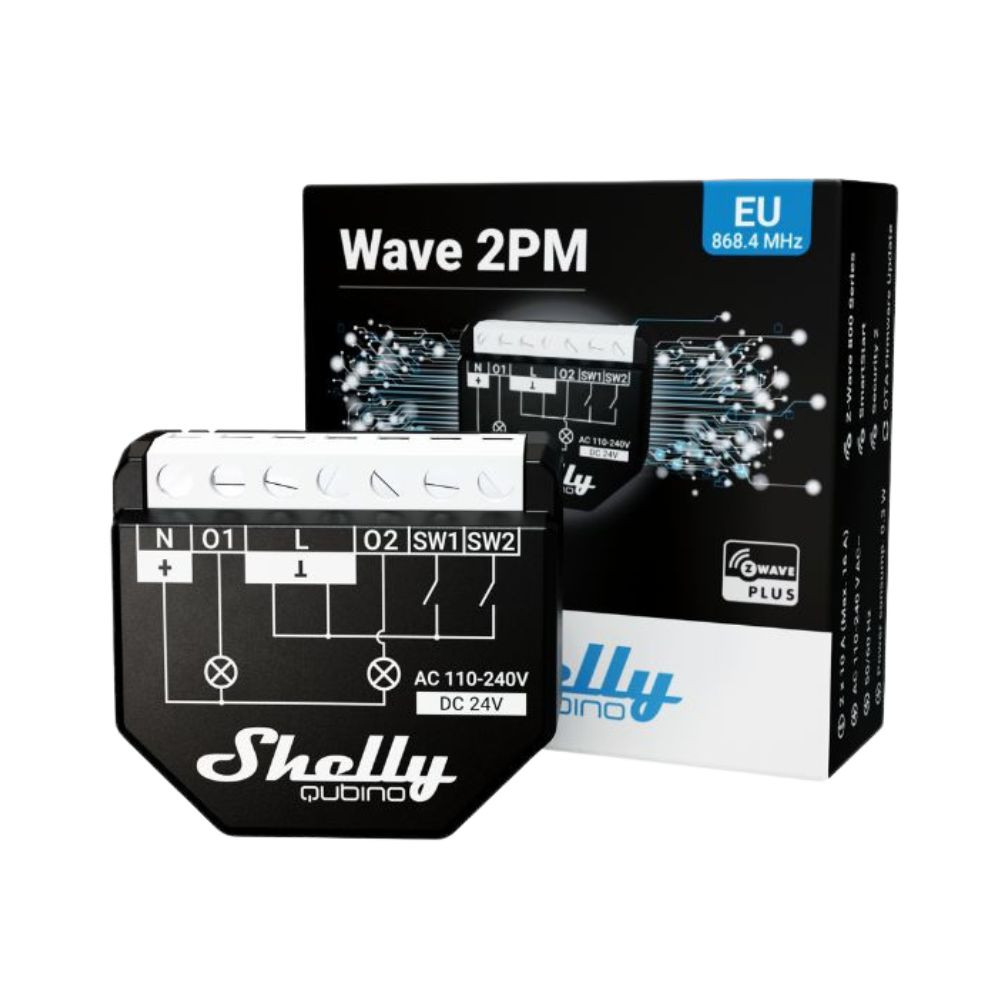

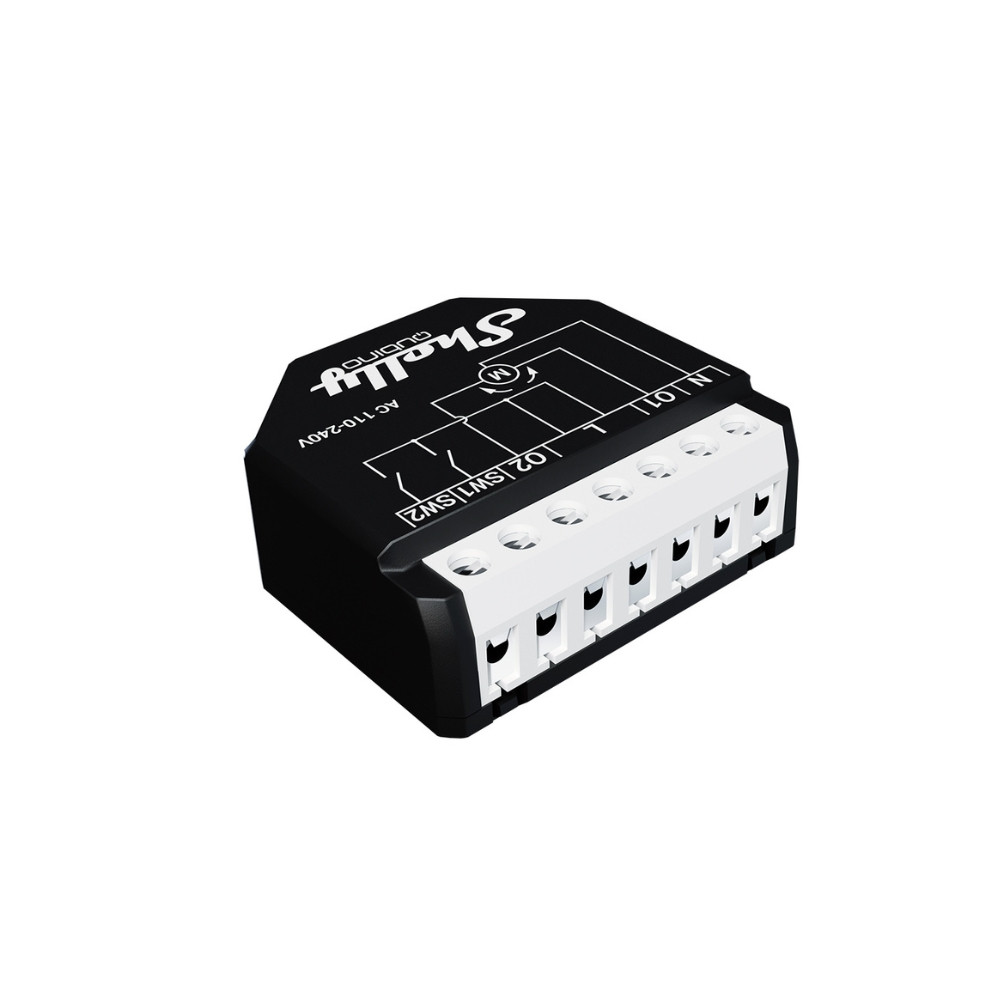

The Shelly Wave Shutter is a 230V AC powered smart relay module with power meter, part of the Shelly Wave family of products that uses the Z-Wave protocol for communication (868.42 MHz in Europe). As Z-Wave is a smart home protocol, it is specifically designed for communication between smart devices. Thanks to the sub-gigahertz frequency, the signal propagation is good and thanks to the Z-Wave MESH network topology, devices far away from the central unit can communicate properly (devices under continuous power supply act as signal relays). Z-Wave devices need a Z-Wave Hub or USB coordinator (connected to a miniPC, for example) to work. The Z-Wave protocol uses a unified communication command class, so that thousands of products from hundreds of different brands are compatible with each other, and devices in a Z-Wave system can work together as a network. A Z-Wawe network can contain up to 232 devices. An additional advantage of the Z-Wave protocol is that it supports Association Groups, which allow direct associations to be created between individual devices in the network. An additional advantage of Z-Wave devices is that they can be configured with a number of parameters at the protocol level, so that they can be customised to meet the most specific needs.
It can be used to automate and remotely control the position of roller shutters, blinds, windows, awnings, pool covers, and other devices powered by bi-directional AC motors.
Features:
Control the tilt position (angle) of the venetian blind slats
Supports push-buttons/momentary switches, and toggle switches
Power metering
Extremely low power consumption: < 0.3 W
Z-Wave frequency band: 868.4 MHz (CEPT countries)
Latest technology: Z-Wave 800 Series
Automatic set-up with SmartStart
Security 2 Authenticated for the highest level of security
Over-the-air firmware updates
Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
Pairing:
the module has an "S" button, which is a function button. This button is used to start the mating, unmating and factory reset processes. These functions are available for a limited period of time after power-up.
Pairing/Removal/Factory Reset:
Press and hold the "S" button to pair until the status LED turns blue. Then directly press the "S" button again (min 2 seconds) to initiate the pairing/unpairing status.
Recommended and tested gateways for Shelly Qubino Wave devices:
- Home Assistant
- Home Center 3
- Jeedom
- Homey
- Smart things
- Hubitat
Specifications:
- Output: 2 gang: open / close, 110-230 VAC
- Maximum Current: 230V AC 10A (for each gang),
- Low standby power consumption: 0.3 W.
- Communication protocol: Z-Wave 800
- Z-Wave frequency: 868.4 MHz (EU)
- Range: up to 40 m inside the building (walls may be reduced by slabs)
- Power consumption measurement: YES
- SmartStart: YES
- S2 encryption: YES
- Z-Wave repeater function: YES
- Wireless firmware update (OTA): YES
- Operating temperature: -20 - +40 °C

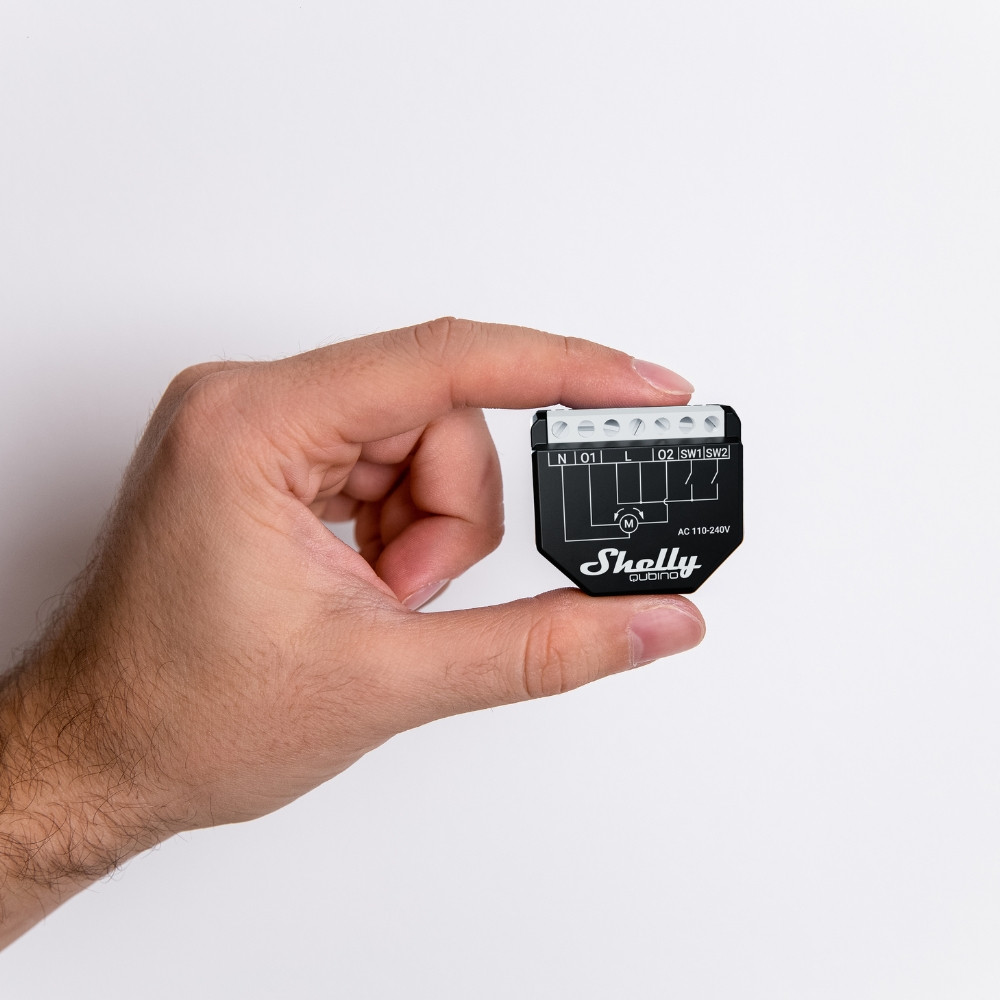

- Size: 37 x 42 x 16 mm
- Weight: 37g
Mounting options:

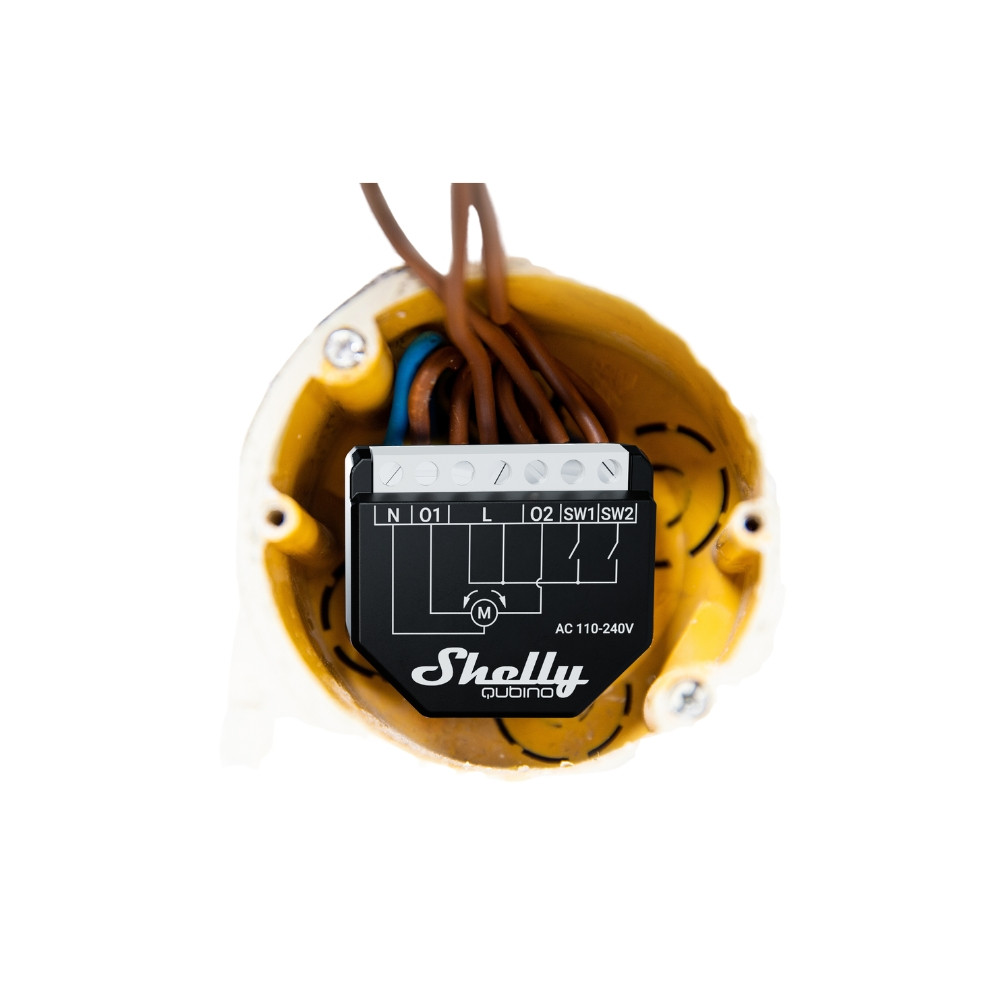

- Typically fits into a standard size mounting box, but a recessed mounting box is recommended to speed up module installation time
- DIN-rail adapter (separate product) can be used to mount on hat rails, in-line.
Like other smart relays, this one requires not only a phase but also a neutral wire.
