About Z-Wave:
Z-Wave is a smart home protocol specifically designed for communication between smart devices. Its sub-gigahertz frequency ensures excellent signal coverage, while the Z-Wave MESH network topology allows devices farther from the central hub to communicate effectively (continuous power-supplied devices function as signal repeaters).Z-Wave devices require a Z-Wave Hub or USB coordinator (such as one connected to a mini PC) for operation. The Z-Wave protocol uses standardized command classes (Command Class), enabling compatibility between thousands of devices from different brands within one Z-Wave network. A Z-Wave network can support up to 232 devices.One key advantage of Z-Wave technology is its support for Association Groups, which allow direct communication between individual devices within the network. Additionally, Z-Wave devices offer extensive parameter customization options, enabling users to tailor settings for even the most sophisticated requirements.

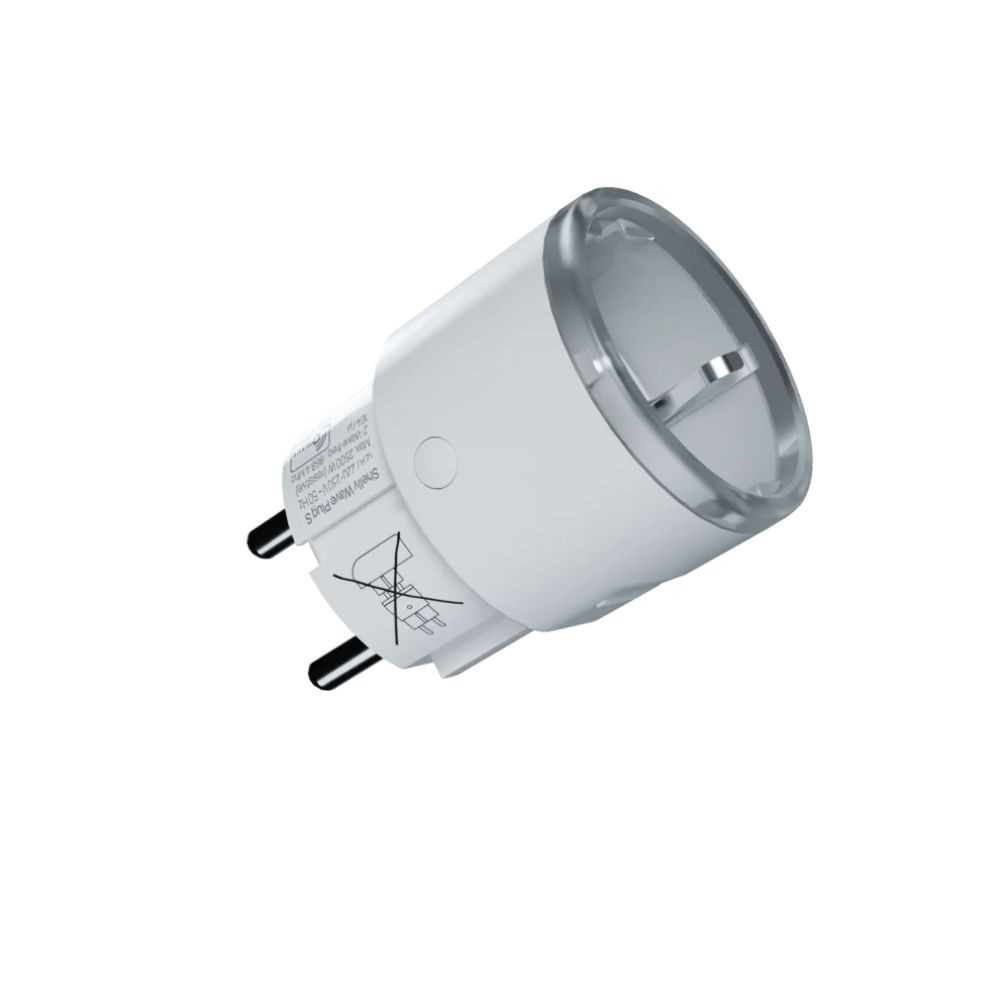

Shelly Wave Plug S – Smart Plug with Z-Wave Technology
The Shelly Wave Plug S is a smart plug that utilizes Z-Wave technology, enabling remote control and monitoring of electrical appliances. Equipped with a built-in power meter and overheat protection, this device ensures safe and efficient operation.
Key Features:
- Remote Control: Manage your household electrical appliances from anywhere using your smartphone, tablet, or computer.
- Power Monitoring: The built-in power meter tracks energy consumption, allowing you to optimize energy usage.
- Overheat Protection: The device automatically turns off if overheating is detected, preventing potential accidents.
- Z-Wave Compatibility: The Shelly Wave Plug S is compatible with all Z-Wave protocol-supported gateways, ensuring seamless integration into your existing smart home system.
Integration and Compatibility:
The Shelly Wave Plug S integrates smoothly with various smart home systems, making it a versatile addition to your smart home setup.Compatible with:
- Z-Wave Networks: Easily add the plug to your existing Z-Wave network to enhance interoperability with other Z-Wave-certified devices.
- Smart Home Platforms: Works with popular platforms such as Homey, SmartThings, Home Assistant, and Fibaro, enabling advanced automation routines.
- Voice Assistants: Supports Amazon Alexa and Google Assistant via a gateway for convenient voice control.
Technical Specifications:
- Power Supply: 230 V ±10%, 50/60 Hz
- Switching Voltage: 230 V AC
- Switching Current: 12 A
- Maximum Load Capacity: 2500 W (resistive load)
- Power Consumption: < 0.7 W
- Wireless Connectivity: Z-Wave S800 chip, 868.4 MHz frequency band (indoor range up to 40m)
- Dimensions (H x W x D): 60 x 60 x 56 ±0.5 mm
- Operating Temperature: -20 °C to +40 °C
- Humidity: 30%–70% RH
- Output: CEE 7/3 (Type-F / Schuko) socket
Safety Features:
- Overheat protection
- Overvoltage protection
- Overcurrent protection
- Overload protection
Supported Load Types:
- Resistive: Incandescent lamps, heaters
- Capacitive: Capacitor banks, electronic devices
- Inductive: LED drivers, transformers, fans, refrigerators, air conditioners
Application Areas:
- Residential Use: Control household appliances, lighting, and heating.
- Multi-residential Buildings: Ideal for apartments, condominiums, and hotels.
- Light Commercial Use: Suitable for small office buildings, retail shops, restaurants, and gas stations.
- Government/Municipal/Institutional Buildings: Perfect for public sector environments.
- University/Dormitory Settings: Enhances control in shared living spaces.
Integration and Compatibility:
The Shelly Wave Plug S is compatible with numerous smart home systems, including Amazon Alexa, Google Assistant, and Samsung SmartThings. Thanks to Z-Wave technology, it integrates seamlessly with other Z-Wave devices and gateways, offering flexible expansion options for your smart home setup.The Shelly Wave Plug S is an ideal solution for those seeking to enhance their home’s comfort and energy efficiency while ensuring the safe operation of connected devices.
