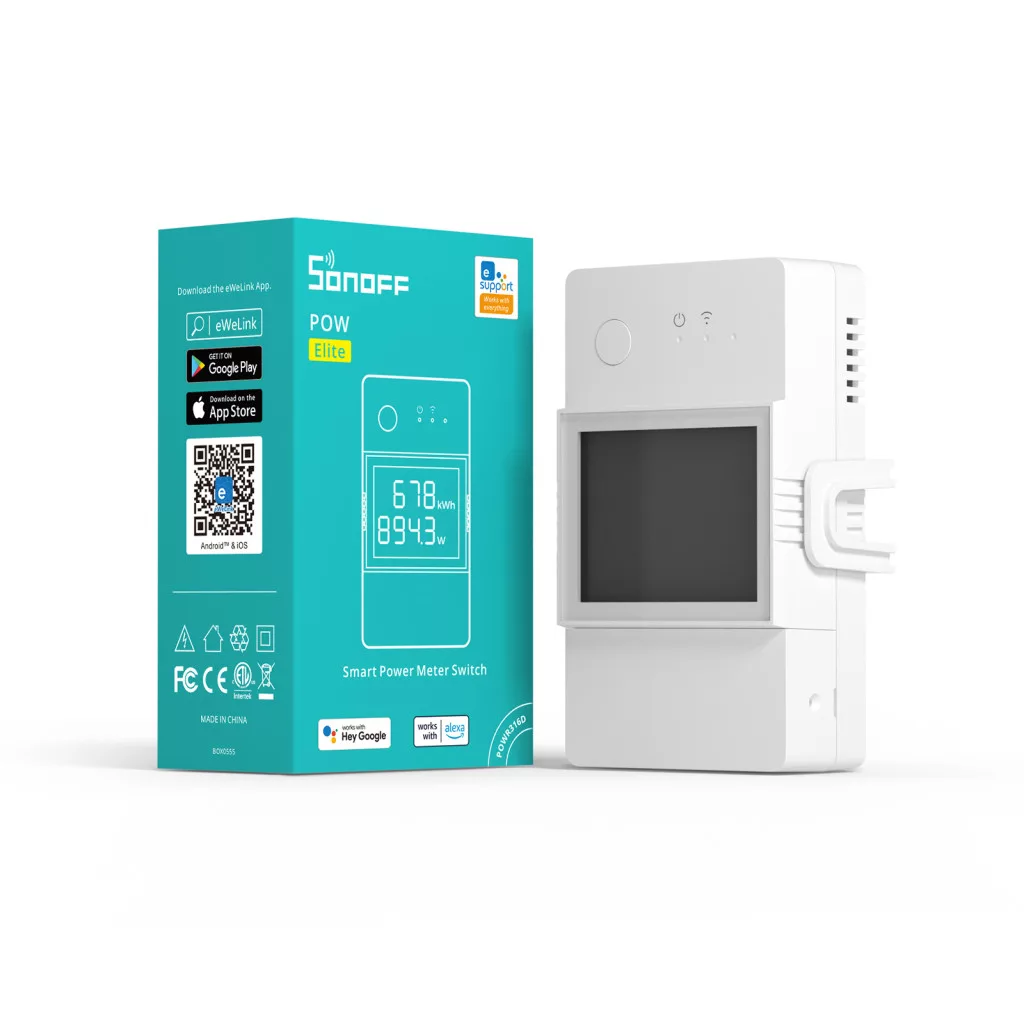

Sonoff POW Elite R3 (20A) WiFi smart relay with power meter and LCD display (POWR320D)

Pow Elite R3 comes with an LCD screen and 20A relay, and of course, a built-in power meter. 6 months of power consumption data (by hour) is stored in eWeLink cloud. As part of the Overload Protection feature, you may set a threshold for power, current, and voltage.

It supports sending notification when daily or monthy consumption reaches a certain pre-set value, consumption can be resetted, and consumption data can be also downloaded.


All product prices include VAT.
Note: Guest users see prices with estimated VAT amount. The payable price with your local value-added tax amount will be calculated based on your shipping address, added at checkout or set in your user profile.

Brand:
Sonoff
Factory SKU ID:
POWR320D
Supported protocols:
Wi-Fi
last pieces (1 pcs)
20.24
Details

SONOFF POW Elite 20D (POWR320D) is a 20A max. performance power meter switch, a newly upgraded ESP32 chip 200% faster than the previous ESP8622 chip. With an LCD screen, it can track your appliances' power, current, and voltage in real-time and cumulative power consumption. POW Elite support to check 6-Month power consumption historical data accurate to the hour, the data can be exported to excel on your phone. You can set daily/monthly power consumption thresholds when the consumption goal is reached, you will get a push notification.

Support adding SONOFF devices to Home Assistant for control and automation through the eWeLink add-on. What's more, to better help you save energy usage, POW Elite joins Alexa Energy Dashboard, you can centrally view the overall or individual device energy consumption in the dashboard. If you subscribe eWeLink Advanced plan, POW Elite is also compatible with IFTTT and eWeLink Web control.


POW Elite with the highest flame-retardant grade V-0 enclosure, upgraded terminal wirings, and more amounts of tin minimize every security risk detail.

【LCD Screen】Track of power, current, voltage, and cumulative power consumption of your appliances in real-time on the LCD screen.
【20A Max Load】Support maximum 20A load, POW Elite compatible with more home appliances.
【6-Month Consumption History Data by Hour】 Power consumption data (accurate to hours) can be kept for up to 6 months which can be exported to excel on your phone.
【Overload Protection】You can set power, current, and voltage threshold. Once any condition is met, the POW Elite will be turned off to protect your appliances.
【Fully Functional】POW Elite has all the most basic functions, like App control, voice control, LAN control, timing schedule, inching setting, power on state, etc.



Info
Product type:
smart WiFi relay with power meter
Colour:
white
Device power supply:
110V-240V AC
Wiring:
230V AC (live and neutral)
DIN rail compatible:
yes
Embedded relay:
yes
Dimmer feature:
no
Power consumption metering:
yes
Number of gangs / circuits:
1
NO/NC switch:
no
Rated voltage (output):
100V-240V AC
Rated current (output):
20A
Physical on/off button on device:
yes
External switch supported:
no
2-way or 3-way switching:
no
Momentary switching (inching):
yes
Overheat protection:
no
Wi-Fi:
yes
Wi-Fi standards:
802.11 b/g/n (2.4GHz)
Zigbee:
no
Thread:
no
Z-Wave:
no
RF transmitter / receiver:
no
Bluetooth:
Bluetooth pairing with phone
Controllable from internet:
yes
Manufacturer smartphone app:
yes, free app: eWeLink (Android, iOS)
Voice control:
Amazon Alexa and Google Assistant compatible
Cloud mode:
default mode is connecting to the eWeLink cloud
LAN mode:
yes, if the connection with the eWeLink cloud is disconnected, limited features
REST API support:
no
MQTT support:
no
Supported integrations:
Amazon Echo, Echo Dot, Amazon Tap, Google Home, Google Nest, IFTTT (IFTTT integration with subscription, Premium feature)
Schedulers, timers:
yes, 8 timings on the device in offline mode, (loop control supported), any further timing can be run from the cloud in online mode
Notification functions:
eWeLink app notification on smartphone for on/off, or for daily or monthly consumption limit
History:
6 month of consumption history stored in the cloud;yes: on/off history in the app
Warranty:
24 months
Weight:
150 g/pcs
