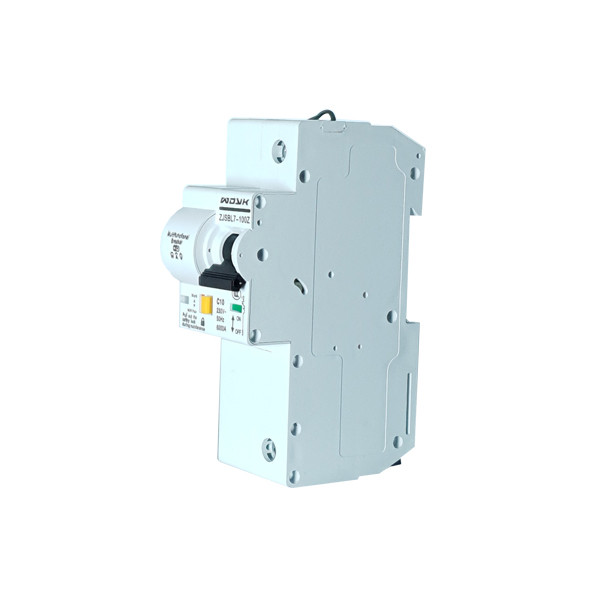

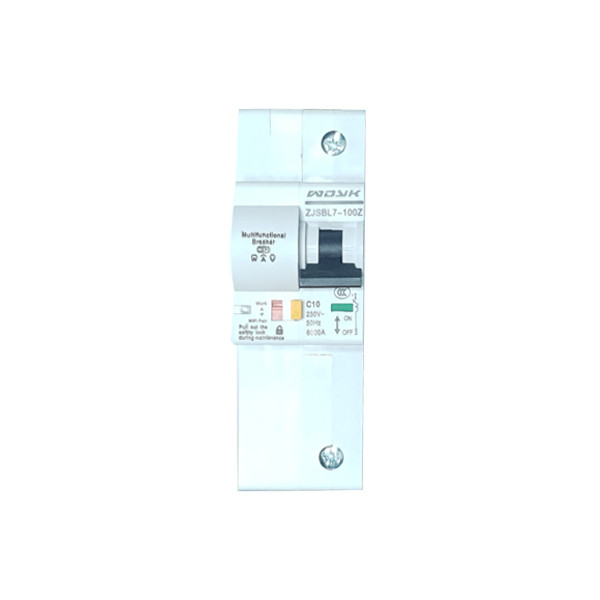

WDYK MCB POW 63A 1P is a 1-pole smart MCB (smart mini circuit breaker) with power meter, equipped with Wi-Fi and support for eWeLink cloud and eWeLink app. It's a high perormance solution, it supports max. 63A. The max. performance is configurable, so you may set any lower values to turn off at.
But it is not just a circuit breaker though, as it has a power metering / energy monitoring capability, so it also can be used to measure power consumption. It also features a built-in OPS feature (overload-protection system), to protects the connected devices for overvoltage, overcurrent and overpower.
This device needs Live and Neutral on the input side (for its operation) and has Live only on the output side. Using the eWeLink app, one may turn ON / OFF the breaker via Internet and iOS (Apple) or Android smartphone App, and also one can set scheduled turning ON / OFFs. The device has a physical button too, similarly to traditional breakers. Its ON/OFF button has a motor inside, so you can remotely turn it on of off. Share remote control in the App with others is also supported.
Features real-time power metering, daily and monthly statistics are displayed in the mobile app. It also supports downloading the consumption data to your smartphone in CSV format. The smart switch relay provides help not only in remote and scheduled turning ON / OFF ideal solution to understand and optimize your power consumption too.
It meters not only actual power consumption, but also shows actual voltage and current data on the screen. It has OPS (overload protection setting) available (with minimum power, maximum power, maximum current and maximum voltage settings). 100 days of consumption data history export is supported to smartphone from eWeLink cloud in CSV format.
Product features:
- a smart MCB - a smart Mini Circuit Breaker
- Equipped with Wi-Fi, connects to eWeLink cloud via Wi-Fi router, controllable with eWeLink app, no need for a local hub
- 1-pole breaker for Live wire only, but also needs a neutral line on the input side for its operation
- Real-time power metering – displays actual consumption, voltage and current in the eWeLink App
- Period consumption metering – stop-watch metering function, consumption is metered from start to stop
- Power consumption statistics - daily and monthly total consumption statistics displayed in the App (monthly periods, over last 100 days)
- OPS: overload protection settings
- Remote ON / OFF – Anytime, anywhere, from now on you can turn all your appliances on and off remotely.
- Mobile App – free iOS and Android mobile App: eWeLink
- Sync status – Check actual relay status (turned ON or OFF) with the mobile App
- Timer – Various timer functions: single time, scheduled turn on/off, countdown/timer, loop.
- Share control – Control the device together with your family
- Group control – Group silimar devices and turn them all ON / OFF at once
- Smart scene – Triggered ON/OFF by temp, hum or other environmental sensors
- Compatibility – Works perfectly with Amazon Alexa, Google Assistant, IFTTT and Google Nest
- eWeLink-compatible - uses eWeLink cloud and eWeLink app, compatible with Sonoff and SmartWise products
