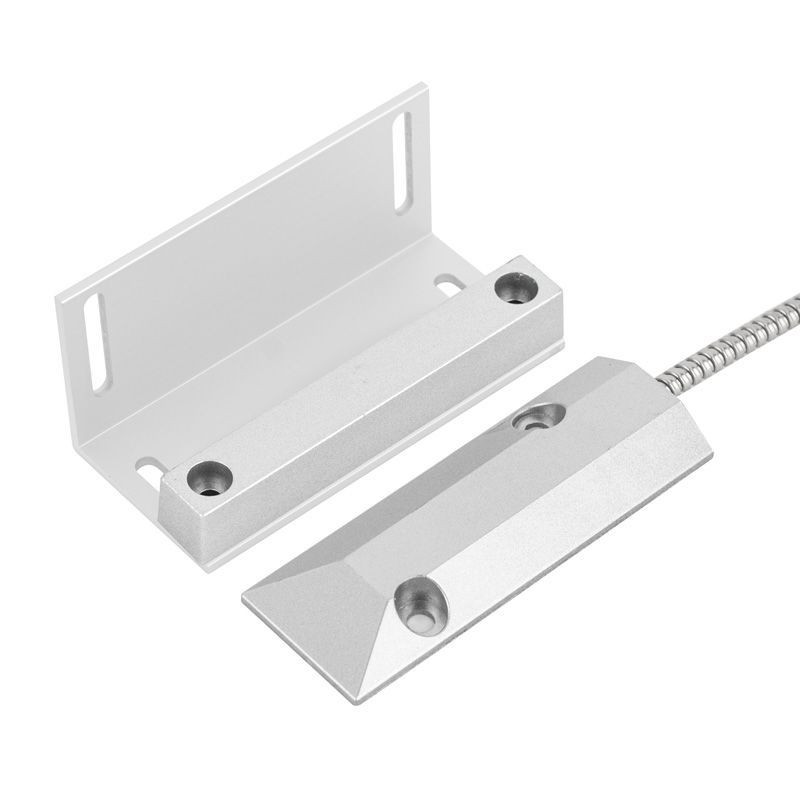

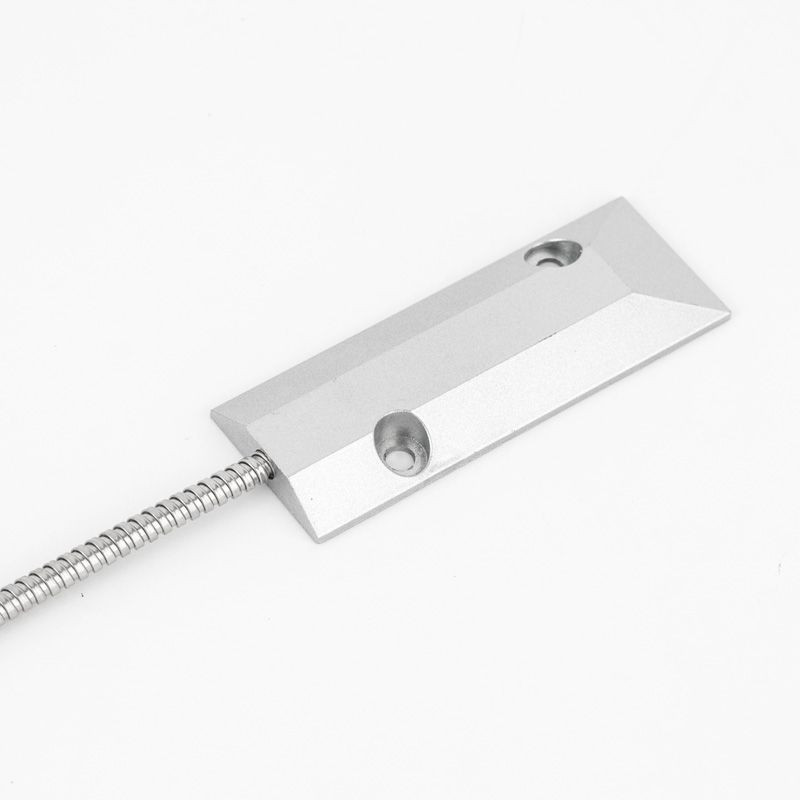

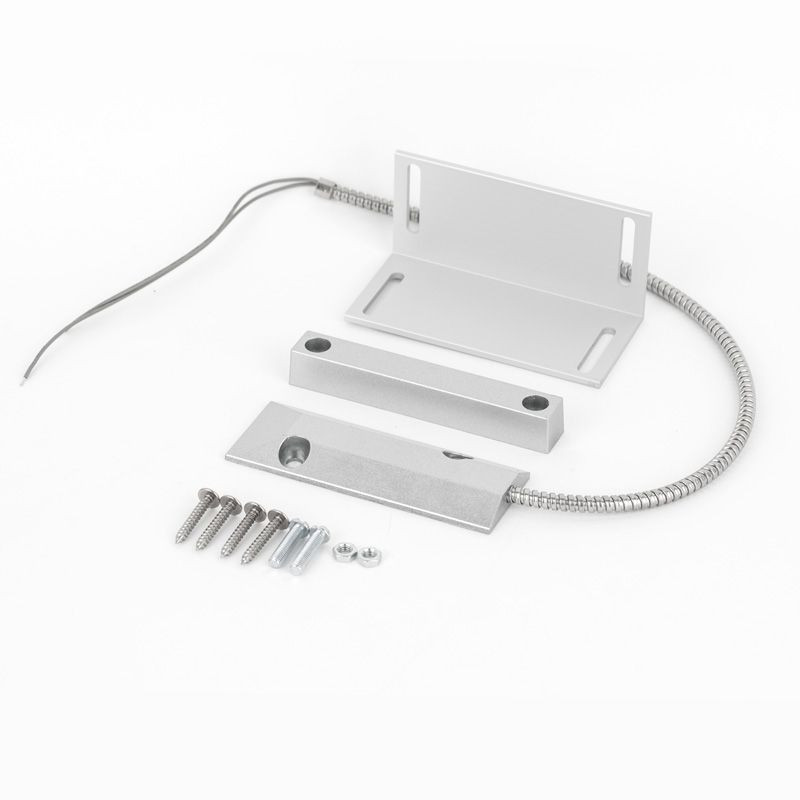

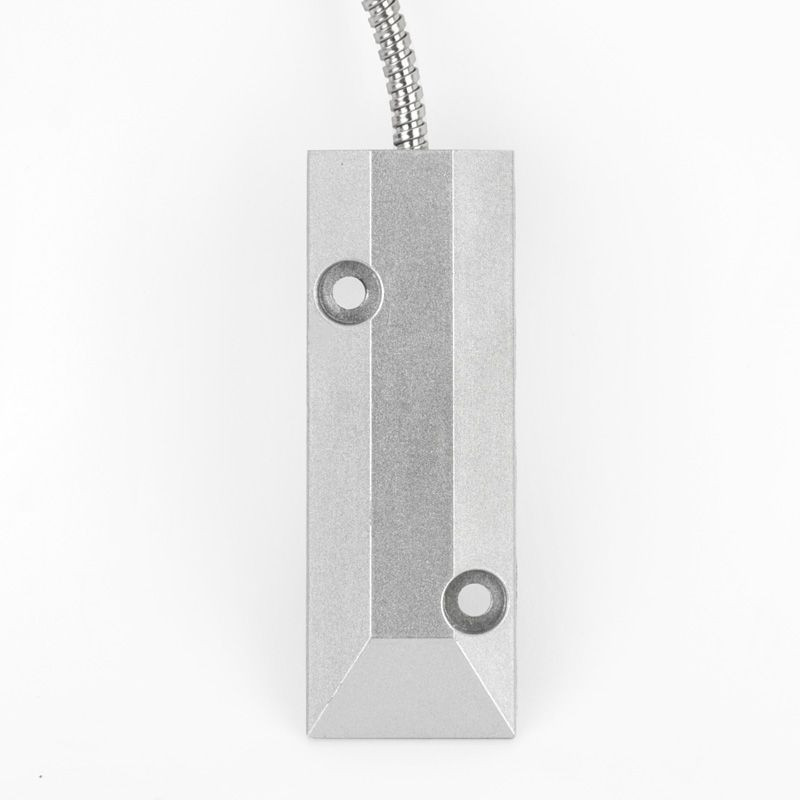

Wired, outdoor NC open / close sensor (5C-55AL)

Name: Wired, outdoor NC open / close sensor (5C-55AL)
Brand: other
Price: 13.79 EUR
Availability: InStock

The 5C-55AL is a surface-mounted, large metal open / close detector for garage doors and gates. Reed relay NC contact (2 wires), so it will short-circuit a closed door. Ideal for access control systems for feedback of door status.

All product prices include VAT.
Note: Guest users see prices with estimated VAT amount. The payable price with your local value-added tax amount will be calculated based on your shipping address, added at checkout or set in your user profile.

Brand:

other

Factory SKU ID:

5C-55AL

Warranty:

12 Months

Wired, outdoor NC open / close sensor (5C-55AL)

last pieces (2 pcs)

13.79 €

Details

The 5C-55AL is a surface-mounted, large metal opening detector for sectional doors. Reed relay NC contact (2 wires), so it will short-circuit a closed door. Ideal for access control systems for feedback of door status.

Recommended for smart motorized gate control and garage door control, used together with Shelly PLUS 1 WiFi + Bluetooth smart relay + Shelly PLUS Add-ON Sensor Adapter for Shelly PLUS relays

Sensor contact: NC (short circuit in case of closed door)

Maximum detection distance: 78 mm

Type of connection: Wired

Detector size: 105 x 37.5 x 9.5 mm

Detector load capacity: 0.5A @ 100 V DC

Type of opening sensor:Reed relay

Mounting method: Surface mount

Material: Zinc-Aluminium alloy

Other features: Recommended for sectional garage doors.

Certificate: CE

Info

Sensor:

open / close sensor

Size:

105 x 37,5 x 9,5 mm

Weight:

277 g/pcs
